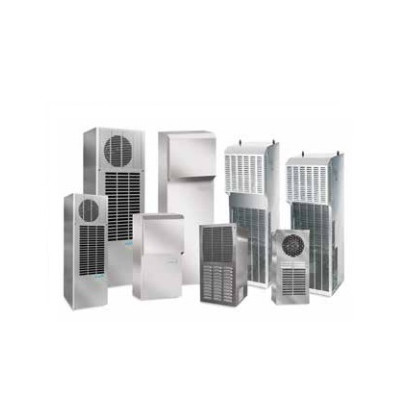

3000-5000 BTU/h, NEMA 3R/4 Pfannenberg Cooling Unit, 13383436351 (13383436351)

3000-5000 BTU/h, NEMA 3R/4 Pfannenberg Cooling Unit, 13383436351 (13383436351)

Brand:
Pfannenberg
Model:
13383436351
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
13383436351
Brand:
Pfannenberg
Product Condition:
New
Phase Rating:
1 Phase Input - No Output
Refrigerant Type:
R-134a
Enclosure Rating:
UL Type 3R
Enclosure Rating:
UL Type 4
Construction:
Gray Powder Coated Steel
Series:
DTS 3000
Height:
36.00 in
Width:
12.25 in
Depth:
14.40 in

Product Information

Pfannenberg DTS 3000 Series

DTS NEMA Type 3R/4

The DTS 3000 Series was designed for maximum longevity and efficiency. The units have a high ambient temperature performance, are environmentally friendly, and utilize an active condensate water management system. The DTS NEMA type 3R/4 has a steel powder coated cover, ideal for rugged environments.

Standard Features

Product Details

Manufacturer
Pfannenberg

Series
DTS 3000

Model
13383436351

Condition
New

Cooling Capacity (BTU/h)
3000-5000

95/95 Rating (BTU/h)
5107

Nominal Current
6.5A

Starting Current
14.8A

Input
1-Phase
360-506V

Output
1-Phase
360-506V

Enclosure
NEMA 3R/4

Construction Material
Gray Powder Coated Steel

Refrigerant Type
R134a

Ambient Temp. Range
0-55° C

Filter Included
No

Dimensions
Height: 36.00 in
Width: 12.25 in
Depth: 14.40 in

Download Manual
