7000-8500 BTU/h, NEMA 3R/4 Pfannenberg Cooling Unit, 13385736351 (13385736351)

Brand:
Pfannenberg
Model:
13385736351
Condition:
New
0 Customer Reviews
Out Of Stock
Adding to cart… The item has been added

Technical Specifications

Model:
13385736351
Brand:
Pfannenberg
Product Condition:
New
Phase Rating:
3 Phase Input - 3 Phase Output
Refrigerant Type:
R-134a
Enclosure Rating:
UL Type 3R
Enclosure Rating:
UL Type 4
Construction:
Gray Powder Coated Steel
Phase:
Three Phase
Series:
DTS 3000
Height:
47.60 in
Width:
15.55 in
Depth:
12.83 in

Product Information

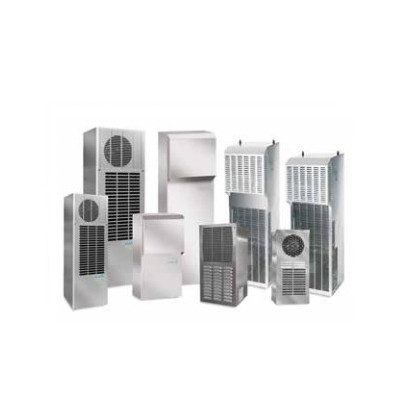

Pfannenberg DTS 3000 Series

DTS NEMA Type 3R/4

The DTS 3000 Series was designed for maximum longevity and efficiency. The units have a high ambient temperature performance, are environmentally friendly, and utilize an active condensate water management system. The DTS NEMA type 3R/4 has a steel powder coated cover, ideal for rugged environments.

Standard Features

Product Details

Manufacturer
Pfannenberg

Series
DTS 3000

Model
13385736351

Condition
New

Cooling Capacity (BTU/h)
7000-8500

95/95 Rating (BTU/h)
7850

Nominal Current
2A

Starting Current
16A

Input
3-Phase
360-506V

Output
3-Phase
360-506V

Enclosure
NEMA 3R/4

Construction Material
Gray Powder Coated Steel

Refrigerant Type
R134a

Ambient Temp. Range
0-55° C

Filter Included
No

Dimensions
Height: 47.60 in
Width: 15.55 in
Depth: 12.83 in
