12000-14000 BTU/h, Washdown NEMA 4/4X Pfannenberg Cooling Unit, 13383036158 (13383036158)

12000-14000 BTU/h, Washdown NEMA 4/4X Pfannenberg Cooling Unit, 13383036158 (13383036158)

Brand:
Pfannenberg
Model:
13383036158
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
13383036158
Brand:
Pfannenberg
Product Condition:
New
Phase Rating:
3 Phase Input - 3 Phase Output
Refrigerant Type:
R-134a
Enclosure Rating:
UL Type 4
Enclosure Rating:
UL Type 4X
Construction:
Stainless Steel
Phase:
Three Phase
Series:
DTS 3000
Height:
59.13 in
Width:
15.87 in
Depth:
18.43 in

Product Information

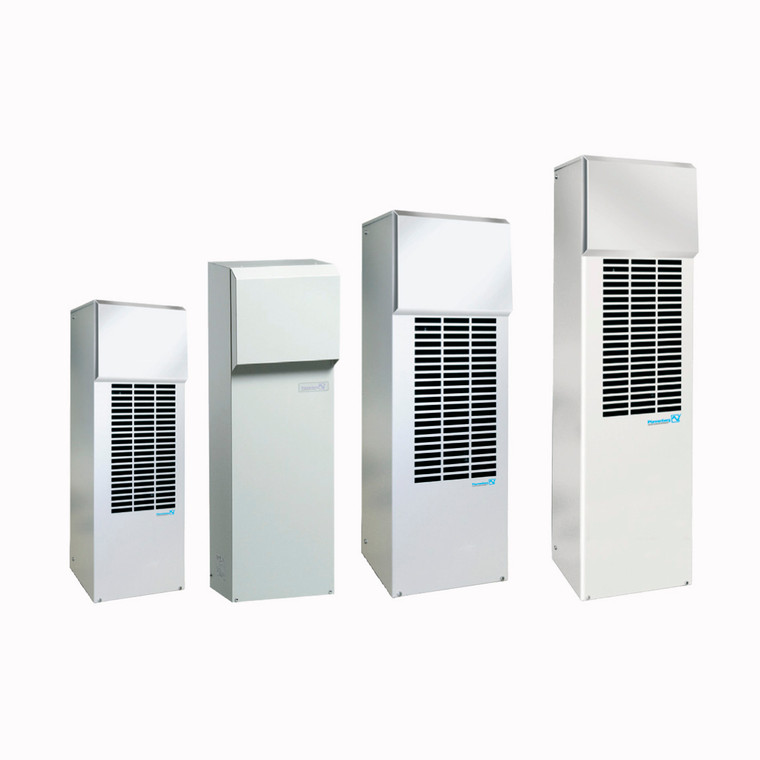

Pfannenberg DTS 3000 Series

DTS NEMA Type 4/4X

The DTS 3000 Series was designed for maximum longevity and efficiency. The units have a high ambient temperature performance, are environmentally friendly, and utilize an active condensate water management system. The DTS NEMA Type-4/4X has a stainless steel cover, ideal for washdown applications.

Standard Features

Product Details

Manufacturer
Pfannenberg

Series
DTS 3000

Model
13383036158

Condition
New

Cooling Capacity (BTU/h)
12000-14000

95/95 Rating (BTU/h)
11250

Nominal Current
4.5/4.1A

Starting Current
16A

Input
3-Phase
360-506V

Output
3-Phase
360-506V

Enclosure
NEMA 4/4X

Construction Material
Stainless Steel (304)

Refrigerant Type
R134a

Ambient Temp. Range
0-55° C

Filter Included
No

Dimensions
Height: 59.13 in
Width: 15.87 in
Depth: 18.43 in

Download Manual
