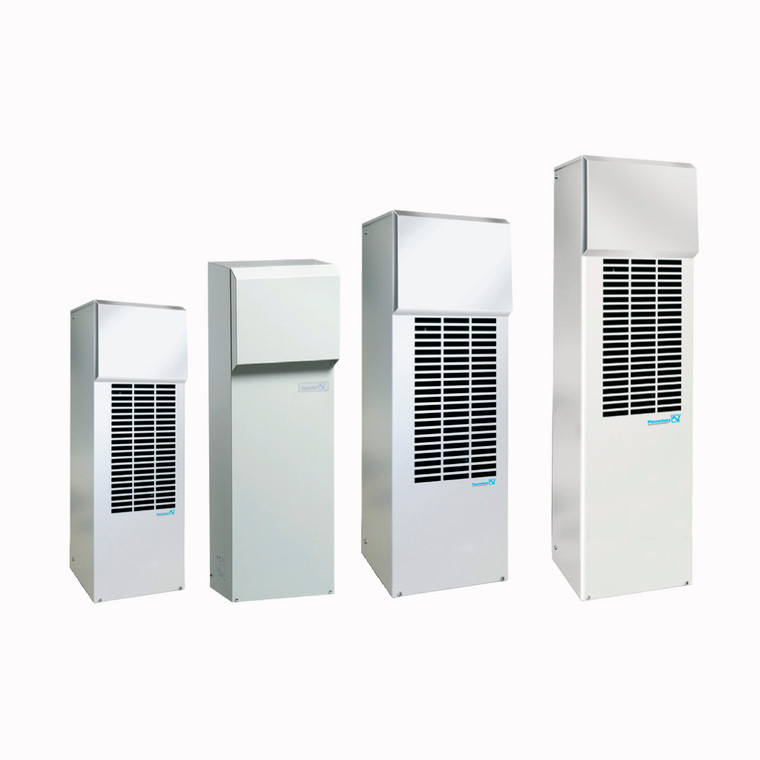

9000-12000 BTU/h, Washdown NEMA 4/4X Pfannenberg Cooling Unit, 13383836158 (13383836158)

9000-12000 BTU/h, Washdown NEMA 4/4X Pfannenberg Cooling Unit, 13383836158 (13383836158)

Brand:
Pfannenberg
Model:
13383836158
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
13383836158
Brand:
Pfannenberg
Product Condition:
New
Phase Rating:
3 Phase Input - 3 Phase Output
Refrigerant Type:
R-134a
Enclosure Rating:
UL Type 4
Enclosure Rating:
UL Type 4X
Construction:
Stainless Steel
Phase:
Three Phase
Series:
DTS 3000
Height:
53.00 in
Width:
16.00 in
Depth:
14.40 in

Product Information

Pfannenberg DTS 3000 Series

DTS NEMA Type 4/4X

The DTS 3000 Series was designed for maximum longevity and efficiency. The units have a high ambient temperature performance, are environmentally friendly, and utilize an active condensate water management system. The DTS NEMA Type-4/4X has a stainless steel cover, ideal for washdown applications.

Standard Features

Product Details

Manufacturer
Pfannenberg

Series
DTS 3000

Model
13383836158

Condition
New

Cooling Capacity (BTU/h)
9000-12000

95/95 Rating (BTU/h)
10875

Nominal Current
2.6A

Starting Current
8A

Input
3-Phase
360-506V

Output
3-Phase
360-506V

Enclosure
NEMA 4/4X

Construction Material
Stainless Steel (304)

Refrigerant Type
R134a

Ambient Temp. Range
15-55° C

Filter Included
No

Dimensions
Height: 53.00 in
Width: 16.00 in
Depth: 14.40 in

Download Manual
