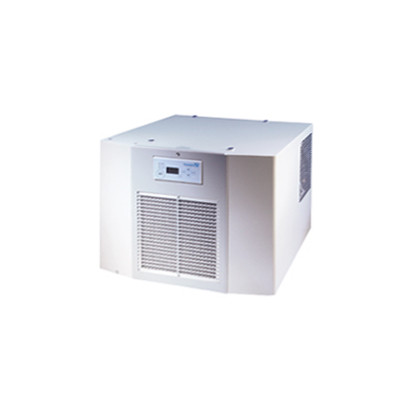

12000-14000 BTU/h, NEMA TYPE 12 Pfannenberg Cooling Unit, 13216832055

Brand: Pfannenberg
Model: 13216832055
Condition: New
Rating:
0% of 100

Out of stock
Technical Specifications
Phase Three Phase
Phase Rating 3 Phase Input - 3 Phase Output
Series DTT
Refrigerant Type R-134a
Enclosure Rating UL Type 12
Brand Pfannenberg
Product Condition New
Model 13216832055
Height 19.1 in
Width 31.3 in
Depth 22.6 in
Product Information

Pfannenberg DTT Series

DTT Top Mounted

Using the best available components and design tools allows the DTT Top Mounted Cooling Units to have high reliability. Due to a patented condensate management system, the DTT prevents condensate from penetrating the enclosure. The very small installation size also means that you can install your electrical enclosures in a row to save space.

Standard Features

Product Details

Manufacturer
Pfannenberg

Series
DTT

Model
13216832055

Condition
New

Cooling Capacity (BTU/h)
12000-14000

95/95 Rating (BTU/h)
13645

Nominal Current
7.07A

Starting Current
17.1A

Input
3-Phase
360-506V

Output
3-Phase
360-506V

Enclosure
NEMA TYPE 12

Construction Material
RAL7035 Light Gray

Refrigerant Type
R134a

Ambient Temp. Range
15-55° C

Filter Included
No

Dimensions
Height: 19.10 in
Width: 31.30 in
Depth: 22.60 in
