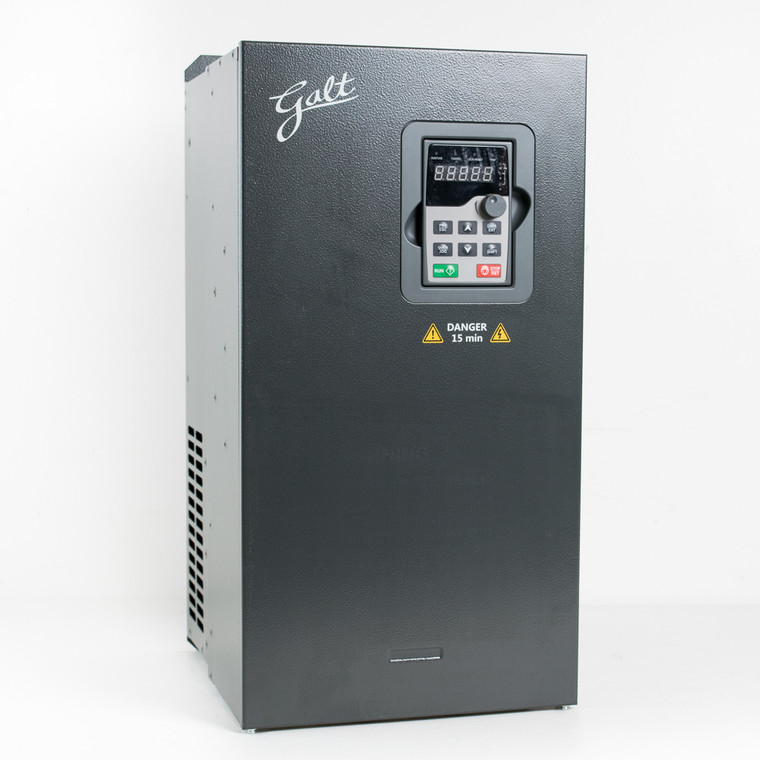

100HP & 125HP 460V Galt Electric G300 VFD, Inverter, AC Drive G340-01800UL-01-60 (G34001800UL01-0U53D)

100HP & 125HP 460V Galt Electric G300 VFD, Inverter, AC Drive G340-01800UL-01-60 (G34001800UL01-0U53D)

Brand:
GALT ELECTRIC
Model:
G34001800UL01-0U53D
Condition:
Used
0 Customer Reviews
VFDs.com Guarantee Badge

Buy Used/ Refurbished Items (Free Shipping + 90 Day Warranty)

Out Of Stock
List Price:  $5,784.00
Online Price: $4,000.00
Adding to cart… The item has been added
  • Built in C3 filter to prevent electromagnetic interference
  • Air-cooling technology implemented
  • Outstanding Motor Driving Performance (1:200 speed ratio)
  • Accurate parametric auto tuning of motor
  • Compatible with a range of different motors
  • External keypad used to change input/output settings easily
  • Runs 20% smoother and quieter compared with a common VFD
  • QR Code Display for Additional Parameter Information and Fault Troubleshooting
Write a Review

Technical Specifications

Model:
G340-01800UL-01-60
Brand:
GALT ELECTRIC
Product Condition:
Used
Warranty:
3 Years
Horsepower Rating:
100 HP
Horsepower Rating:
125 HP
HP Rating @ 120% OL:
125 HP
HP Rating @ 150% OL:
100 HP
Rated Amps:
150 A
Amp Rating @ 120% OL:
180 A
Amp Rating @ 150% OL:
150 A
Rated Voltage:
460 V
Rated Input Frequency:
60 Hz
Output Voltage:
460 V
Output Amperage Rating:
150 A
Phase Rating:
3 Phase Input - 3 Phase Output
Constant Torque / Variable Torque:
Variable Torque/Constant Torque
Phase:
Three Phase
Enclosure Rating:
IP 20
Series:
G300
Rated Amps:
180 A
Height:
14.37 in
Width:
12.80 in
Depth:
26.77 in

Product Information

GALT ELECTRIC G300 Series

The G300 series is a high-performance, high-precision VFD compatible with asynchronous and permanent magnet synchronous motors. The G300 series provides wide voltage ranges and several different methods (MODBUS, PROFIBUS, CAN, and ethernet) to communicate with the VFD. The G300 relies upon a 32-bit DSP and utilizes an advanced vector control algorithm to provide high-performance and high-precision motor control. It can also be used with the GRKP300LCD keypad for a more diverse set up.

Standard Features

  • High performance open or closed-loop sensorless vector control
  • Accurate static and rotating autotuning
  • DC injection, dynamic, flux, and short-circuit braking
  • Built-in EMC filter
  • Detachable LED keypad with upgrade option (LCD keypad) available
  • Integrated PID controller
  • 8 digital inputs, 2 open-collector outputs; 2 relay outputs, 2 form C relay outputs; 3 analog inputs, 2 analog outputs
  • Modbus Communication protocol standard
Download Manual
