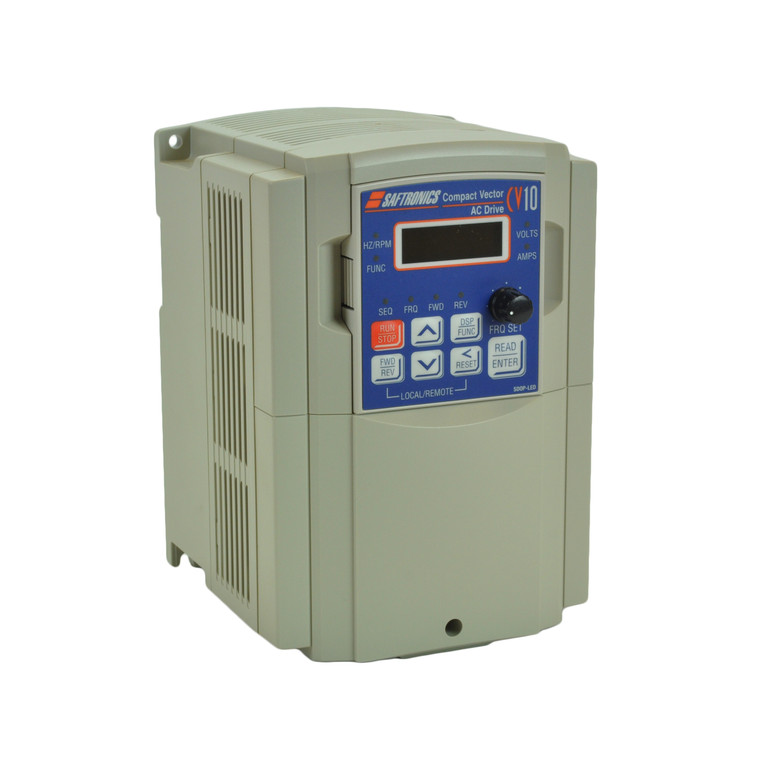

1/2HP 230V Saftronics VFD, Inverter, AC Drive CV102F50-91
Brand: Saftronics
Model: CV102F50-91
Condition: New Surplus
Rating:
0% of 100
Compare with similar items
This Item
![]() |
|
|
![]() |
![]() |
![]() |
|
1/2HP 230V Saftronics VFD, Inverter, AC Drive CV102F50-91 | 0.5HP 230V Galt Electric G200 VFD, Inverter, AC Drive G22S0-00025UL-02 | 0.5HP 230V Galt Electric G200 VFD, Inverter, AC Drive G22S0-00025UL-01 | 1/2HP 230V Saftronics VFD, Inverter, AC Drive S102F50-41 | 0.5HP 230V Delta VFD-S VFD, Inverter, AC Drive VFD004S21B | 0.5HP 230V Delta VFD-EL VFD, Inverter, AC Drive VFD004EL21A | |
|
|
|
|
|
|
|
Ratings |
Rating:
0%
|
Rating:
100%
|
Rating:
0%
|
Rating:
0%
|
Rating:
0%
|
Rating:
0%
|
Price |
$59.99
|
$116.00
|
$116.00
|
$69.99
|
$138.00
|
List Price
$276.00
Online Price
$138.00
|
Free Shipping |
Yes |
Yes |
Yes |
Yes |
Yes |
Yes |
Series |
CV10
|
G200
|
G200
|
S10
|
VFD-S
|
VFD-EL
|
Rated Amps |
3.1 A
|
2.5 A
|
2.5 A
|
2.3 A
|
0.5 A
|
2.5 A
|
Enclosure Rating |
IP 20
|
IP 20
|
IP 20
|
UL Type 4X
|
IP 20
|
IP 20
|
Brand |
Saftronics
|
GALT ELECTRIC
|
GALT ELECTRIC
|
Saftronics
|
Delta
|
Delta
|
Horsepower Rating |
0.5 HP
|
0.5 HP
|
0.5 HP
|
0.5 HP
|
0.5 HP
|
0.5 HP
|
Rated Voltage |
230 V
|
230 V
|
230 V
|
230 V
|
230 V
|
230 V
|
Model |
CV102F50-91
|
G22S0-00025UL-02
|
G22S0-00025UL-01
|
S102F50-41
|
VFD004S21B
|
VFD004EL21A
|
Technical Specifications
Phase Rating | 3 Phase Input - 3 Phase Output |
---|---|
Constant Torque / Variable Torque | Variable Torque |
Series | CV10 |
Phase | Three Phase |
Rated Amps | 3.1 A |
Enclosure Rating | IP 20 |
Brand | Saftronics |
Horsepower Rating | 0.5 HP |
Rated Voltage | 230 V |
Product Condition | New Surplus |
Output Voltage | 230 V |
Output Amperage Rating | 3.1 A |
HP Rating @ 150% OL | 0.5 HP |
Amp Rating @ 150% OL | 3.1 A |
Model | CV102F50-91 |
Height | 6.42 in |
Width | 3.54 in |
Depth | 5.79 in |
Product Information
Saftronics CV10 Series
The CV10 offers both open sensorless vector control and V/Hz control modes, built-in PLC Smart Relay, motor auto tuning for optimal performance, a user friendly LED keypad with speed potentiometer and built-in Modbus RTU and ASCII.
Standard Features
- 650Hz Maximum Output Frequency
- Heavy Duty Rated
- Overload Protection of 150% for up to 1 minute.
- 2 to 16Khz Carrier Frequency
- Built-in Dynamic Braking Transistor
- Sink or Source Digital Inputs
- DC Injection Braking
- 2 or 3 Wire Control
- 18 Pre-defined V/Hz Patterns
- Speed Search
- Auto Torque Boost
- Stall Prevention
- Power Loss Ride Through
- Local/Remote Control
