Saginaw NEMA 3R Industrial Control Enclosure, SCE-65VR3616 (SCE-65VR3616)

Saginaw NEMA 3R Industrial Control Enclosure, SCE-65VR3616 (SCE-65VR3616)

Brand:
SAGINAW
Model:
SCE-65VR3616
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
  • 0.075" Galvannealed steel
  • Black quarter turn latches and Padlock wing knob
  • Provisions for subpanel
  • Doors open 180 degrees
  • Concealed Hinges
  • Vented top hood with bug screen
  • Top mounted fans
  • Vented rain hood with Filter kits in door
  • Din Rail mounting provisions inside top for installation of Thermostat and terminals
  • Oil resistant gasket
  • Ground studs on door and body
  • Mounting Holes for optional Mounting Strips
  • 3/8-16 Grounding Kit
  • Subpanel mounting hardware.
    • Write a Review

    Technical Specifications

    Product Information

    SAGINAW Series

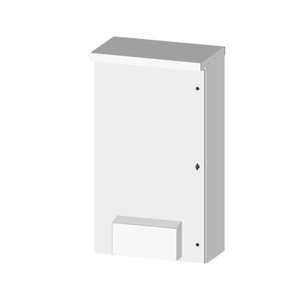

    Saginaw Vented Type 3R Enclosures

    Application

    Designed to house electrical controls, drives, instruments and components used in an outdoor environment to provide a desgree of protection for the equipment inside the enclousre against ingress of solid foreign objects (falling dirt); and provide a degree of protection with respect to the harmful effects on the equipment due to the ingress of water (rain, sleet, snow).

    Construction

    Standard Features

    Drive Details

    Manufacturer
    Saginaw

    Model
    SCE-65VR3616

    Condition
    New

    Industry Standards
    NEMA Types 3R

    Enclosure Type
    Vented Type 3R Enclosure

    Mounting Type
    Wall Mountable

    Construction
    0.075 in Galvannealed Steel

    Dimensions
    Height: 65.00 in
    Width: 36.00 in
    Depth: 16.00 in
