MITSUBISHI

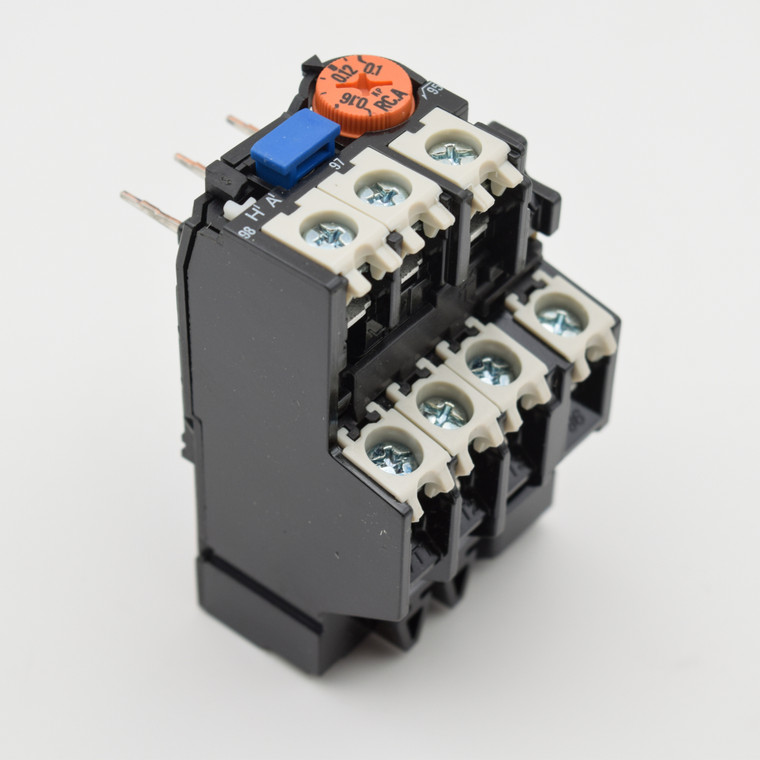

Mitsubishi Thermal Overload Relay, Motor Protection Relay, TH-N12(CX)KPUL.12A (TH-N12(CX)KPUL.12A)

Brand:
MITSUBISHI
Model:
TH-N12(CX)KPUL.12A
Condition:
New
0 Customer Reviews
Out Of Stock
List Price:  $25.00
Online Price: $21.00
Adding to cart… The item has been added
  • TH-N Thermal Overload Relays - A Convenient and Safer System
    The TH-N Series overload relay will protect a motor from burnouts caused by overload, locked rotor, or single phasing. A relay is a three pole, bi-metal, non-interchangeable heater element type (phase failure protection). Although designed as a three pase device, TH-N overload relays can be used to protect single phase motors by connecting two heaters in series to one motor leg, and connecting the thrid heater to the other motor leg.
  • Maintenance and Inspection
    An operation indicator makes maintenance and inspection easy. Checks can be performed using manual operations.
  • Rated Current Can Be Set Easily
    The rated current value is displayed on a dial. Simply adjust the dial to the full-load current of the motor to assure motor protection.
  • Finger Protectors
    TH-N12(CX), TH-N18(CX), and TH-N20(CX) have finger protection as standard. They conform to DIN-VDE_0106 part 100. TH-N60, TH-N120, TH-N220 and TH-N400 are not available with finger protection.

  • Technical Specifications

    Model:
    TH-N12(CX)KPUL.12A
    Brand:
    MITSUBISHI
    Product Condition:
    New
    Height:
    3.00 in
    Width:
    1.75 in
    Depth:
    2.25 in

    Product Information

    MITSUBISHI Series

    Mitsubishi TH-N Series Thermal Overload Relays

    Highlights

  • TH-N Thermal Overload Relays - A Convenient and Safer System
    The TH-N Series overload relay will protect a motor from burnouts caused by overload, locked rotor, or single phasing. A relay is a three pole, bi-metal, non-interchangeable heater element type (phase failure protection). Although designed as a three pase device, TH-N overload relays can be used to protect single phase motors by connecting two heaters in series to one motor leg, and connecting the thrid heater to the other motor leg.
  • Maintenance and Inspection
    An operation indicator makes maintenance and inspection easy. Checks can be performed using manual operations.
  • Rated Current Can Be Set Easily
    The rated current value is displayed on a dial. Simply adjust the dial to the full-load current of the motor to assure motor protection.
  • Finger Protectors
    TH-N12(CX), TH-N18(CX), and TH-N20(CX) have finger protection as standard. They conform to DIN-VDE_0106 part 100. TH-N60, TH-N120, TH-N220 and TH-N400 are not available with finger protection.
  • Standard Features

    Product Details:

    Manufacturer
    Mitsubishi

    Model
    TH-N12(CX)KPUL.12A

    Condition
    New

    Amp Rating
    .12 A

    Rated Insulation Voltage
    690 V

    Auxiliary Contacts
    1 NO + 1 NC
