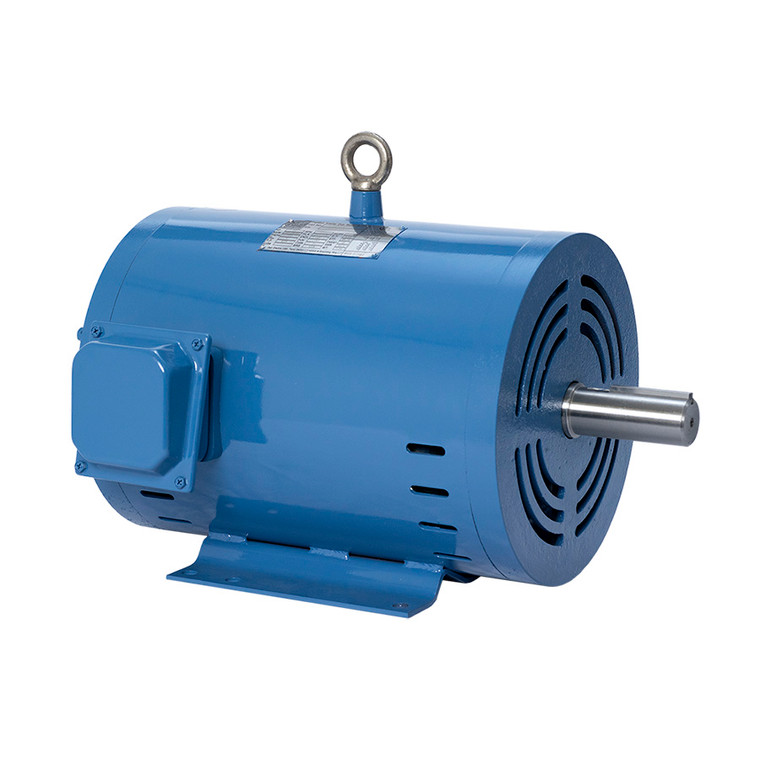

Galt Electric ODP Motor GDP0150-4-254T-K, 15HP, 1800RPM, 3-Phase, 208, 230, 460V, 60Hz, 254T

Model: GDP0150-4-254T-K
Condition: New
Rating:
100% of 100

In stock
$905.00

Highlights

  • Better Fit and finish
  • Oversized bearings
  • Sealed bearings up to 215T size
  • Re-greaseable bearings from 254T and above
  • Quality castings
  • 1.25 Service factor (Up to 100 HP)
  • 1.15 Service factor (125 HP & above)
  • Double drilled feet for most ratings
  • Premium efficiency or above
  • Fully gasketed junction box (90? increment rotatable)
  • Lead support gasketing
  • C-faces available
  • Mounting in any direction
  • Inverter duty insulation system with VPI
  • AISI 4140 shaft material
  • Shaft grounding protection available
  • Standard F1 assembly (F2 available cast iron only)
  • Easy to read stainless steel nameplate

Manufacturer's Website

https://www.galtelectric.com

Technical Specifications
Series GDP
Phase Single Phase
Insulation Class F
Frame Size 254T
Rated Input Frequency 60 Hz
Brand GALT ELECTRIC
Synchronous RPM 1800 RPM
Drawing No drawing
Power Factor 0.84
Construction Cast Iron
Motor Enclosure Type Open Drip Proof (ODP)
Horsepower Rating 15 HP
Rated Voltage 208 V, 230 V, 460 V
Duty Cycle Continuous
Service Factor 1.25
Product Condition New
Rated Amps 18 A
Full Load Torque 44.900000
Efficiency 93%
Model GDP0150-4-254T-K
C Dimension 22.150000
Warranty 3 Years
Product Information

GALT ELECTRIC GDP Series

Galt Electric offers its latest electric motors, including TEFC and ODP enclosures in cast iron, rolled steel, and stainless steel (TEFC only). Galt Electric motors are engineered to last in an industrial environment. Our motors will keep your operations up and running, with a precision balanced aluminum rotor, oversized bearing, inverter duty Class F insulation, better fit and finish, and many other features — all backed by a 3 year warranty. Our engineering prepares for the unexpected, so you don't have to.

Highlights

  • Better Fit and finish
  • Oversized bearings
  • Sealed bearings up to 215T size
  • Re-greaseable bearings from 254T and above
  • Quality castings
  • 1.25 Service factor (Up to 100 HP)
  • 1.15 Service factor (125 HP & above)
  • Double drilled feet for most ratings
  • Premium efficiency or above
  • Fully gasketed junction box (90? increment rotatable)
  • Lead support gasketing
  • C-faces available
  • Mounting in any direction
  • Inverter duty insulation system with VPI
  • AISI 4140 shaft material
  • Shaft grounding protection available
  • Standard F1 assembly (F2 available cast iron only)
  • Easy to read stainless steel nameplate

Manufacturer's Website

https://www.galtelectric.com
