Technical Specifications
Model:
GDP02002-254T-K
Brand:
GALT ELECTRIC
Product Condition:
New
Warranty:
3 Years
Full Load Torque:
29.76
Service Factor:
1.25
Insulation Class:
F
Duty Cycle:
Continuous
Power Factor:
0.9
Efficiency:
91%
C Dimension:
22.15
Phase:
Three Phase
Horsepower Rating:
20 HP
Synchronous RPM:
3600 RPM
Frame Size:
254T
Motor Enclosure Type:
Open Drip Proof (ODP)
Rated Voltage:
208 V
Rated Voltage:
230 V
Rated Voltage:
460 V
Construction:
Cast Iron
Rated Input Frequency:
60 Hz
Rated Amps:
23 A
Product Information

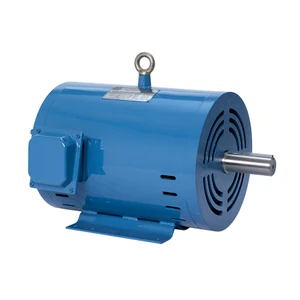

GALT ELECTRIC GDP Series
MOTOR, 20HP, 3600RPM, ODP, 254T
Highlights
- Better Fit and finish
- Oversized bearings
- Sealed bearings up to 215T size
- Re-greaseable bearings from 254T and above
- Quality castings
- 1.25 Service factor (Up to 100 HP)
- 1.15 Service factor (125 HP & above)
- Double drilled feet for most ratings
- Premium efficiency or above
- Fully gasketed junction box (90? increment rotatable)
- Lead support gasketing
- C-faces available
- Mounting in any direction
- Inverter duty insulation system with VPI
- AISI 4140 shaft material
- Shaft grounding protection available
- Standard F1 assembly (F2 available cast iron only)
- Easy to read stainless steel nameplate
