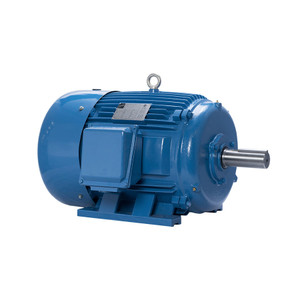

Galt Electric GPT Motor GPT0015-4-145T-K, 1.5HP, 1800RPM, 3-Phase, 208,460V, 60Hz, 143/5T (GPT0015-4-145T-K)

Brand:
GALT ELECTRIC
Model:
GPT0015-4-145T-K
Condition:
New
0 Customer Reviews
In Stock
List Price:  $556.92
Online Price: $278.46
Adding to cart… The item has been added
  • Better Fit and finish
  • Oversized bearings
  • Sealed bearings up to 215T size
  • Regreasable bearings from 254T and above
  • Quality castings
  • 1.25 Service factor (Up to 100 HP)
  • 1.15 Service factor (125 HP & above)
  • Double drilled feet for most ratings
  • Premium efficiency or above
  • Fully gasketed junction box (90° increment rotatable)
  • Lead support gasketing
  • C-faces available
  • Mounting in any direction
  • Inverter duty insulation system with VPI
  • AISI 4140 shaft material
  • Shaft grounding protection available
  • Standard F1 assembly (F2 available)
  • Easy to read stainless steel nameplate

Technical Specifications

Model:
GPT0015-4-145T-K
Brand:
GALT ELECTRIC
Product Condition:
New
Warranty:
3 Years
Rated RPM:
1800 RPM
Full Load Torque:
4.54
Ambient Tempurature Rating:
40 C
Phase:
Three Phase
Service Factor:
1.25
Insulation Class:
F
Duty Cycle:
Continuous
Power Factor:
0.70
Efficiency:
86.5%
C Dimension:
14.6
Horsepower Rating:
1.5 HP
Synchronous RPM:
1800 RPM
Frame Size:
143/5T
Frame Size:
143T
Frame Size:
145T
Motor Enclosure Type:
Totally Enclosed Fan Cooled (TEFC)
Rated Voltage:
230 V
Rated Voltage:
460 V
Construction:
Cast Iron
Rated Input Frequency:
60 Hz
Rated Amps:
2.3 A

Product Information

GALT ELECTRIC GPT Series

Galt Electric offers its latest electric motors, including TEFC and ODP enclosures in cast iron, rolled steel, and stainless steel (TEFC only). Galt Electric motors are engineered to last in an industrial environment. Our motors will keep your operations up and running, with a precision balanced aluminum rotor, oversized bearing, inverter duty Class F insulation, better fit and finish, and many other features - all backed by a 3 year warranty. Our engineering prepares for the unexpected, so you don't have to.

Highlights

  • Better Fit and finish
  • Oversized bearings
  • Sealed bearings up to 215T size
  • Regreasable bearings from 254T and above
  • Quality castings
  • 1.25 Service factor (Up to 100 HP)
  • 1.15 Service factor (125 HP & above)
  • Double drilled feet for most ratings
  • Premium efficiency or above
  • Fully gasketed junction box (90° increment rotatable)
  • Lead support gasketing
  • C-faces available
  • Mounting in any direction
  • Inverter duty insulation system with VPI
  • AISI 4140 shaft material
  • Shaft grounding protection available
  • Standard F1 assembly (F2 available)
  • Easy to read stainless steel nameplate
