Delta VFD-E Series Inverters

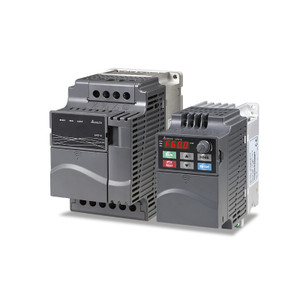

Delta VFD-E Series Inverter/VFD

Sensorless Vector AC Micro Drive. The VFD-E series represent Delta Electronics low horsepower, constant torque, IP20 rated Drive. Modular in design with flexible extension cards and a built-in PLC function, the E drive offers the ability to write and to execute simple Ladder Logic programs. This state-of-the-art series meets a full range of application requirements.

Key Features

  • Modular Design: Modular structure and extension with optional cards
  • Standard MODBUS Protocol: Standard MODBUS Protocol via RS-485
  • Built-in EMC Filter (230 V 1-phase and 460 V 3-phase): Reduces electromagnetic interference efficiently
  • Compact Design: Space saving and easy DIN rail mounting with optional DIN rail adapter
  • Optional Fieldbus Modules: Provide connection to a variety of networks, including PROFIBUS, DeviceNet and CANopen
  • Flexible Extension: Via optional cards, such as I/O card, Relay card, PG (Encoder) card and USB card, to meet your application requirements
  • RFI Switch for IT Mains: Removable "Y" capacitor to use with IT mains supplies
  • Easy DC Bus Sharing: Multiple VFD-E units can be connected in parallel to share regenerative braking energy. In this way, overvoltage is prevented and the DC bus voltage stabilized
  • Complete Protection Functions: High precision current detection, full overload protection (oL, oL1 and oL2), overvoltage/overcurrent stall prevention, short circuit protection, reset after fault, speed search function and motor overheat protection by PTC
  • Removable Keypad: The standard keypad acts as a status monitor. More functions, including parameter modification, RUN/STOP, speed change, and status display, are available via an optional keypad
  • Built-in PLC Function: PLC programming and editing capability without the need of a PLC
  • Easy Maintenance: Removable cooling fan for easy maintenance
  • Delta logo 2HP 460V Delta VFD-E VFD, Inverter, AC Drive VFD015E43P (VFD015E43P)

    2HP 460V Delta VFD-E VFD, Inverter, AC Drive VFD015E43P (VFD015E43P)

    • Model:
      VFD015E43P
    • Brand:
      Delta
    • Product Condition:
      New
    • Warranty:
      1 Year
    • Horsepower Rating:
      2 HP
    • HP Rating @ 150% OL:
      2 HP
    • Rated Amps:
      4.2 A
    • Amp Rating @ 150% OL:
      4.2 A
    • Rated Voltage:
      460 V
    • Rated Input Frequency:
      60 Hz
    • Output Voltage:
      460 V
    • Output Amperage Rating:
      4.2 A
    • Phase Rating:
      3 Phase Input - 3 Phase Output
    • Constant Torque / Variable Torque:
      Constant Torque
    • Phase:
      Three Phase
    • Enclosure Rating:
      IP 20
    • Series:
      VFD-E
    • Weight:
      2.65 LBS
    In Stock
    Online Price: $236.33
    Adding to cart… The item has been added
    VIEW DETAILS
  • Delta logo 0.25HP 115V Delta VFD-E VFD, Inverter, AC Drive VFD002E11A (VFD002E11A)

    0.25HP 115V Delta VFD-E VFD, Inverter, AC Drive VFD002E11A (VFD002E11A)

    • Model:
      VFD002E11A
    • Brand:
      Delta
    • Product Condition:
      New
    • Warranty:
      2 Year
    • Horsepower Rating:
      0.25 HP
    • HP Rating @ 150% OL:
      0.25 HP
    • Rated Amps:
      1.6 A
    • Amp Rating @ 150% OL:
      1.6 A
    • Rated Voltage:
      115 V
    • Rated Input Frequency:
      60 Hz
    • Output Voltage:
      115 V
    • Output Amperage Rating:
      1.6 A
    • Phase Rating:
      1 Phase Input - 3 Phase Output
    • Constant Torque / Variable Torque:
      Constant Torque
    • Phase:
      Single Phase
    • Enclosure Rating:
      IP 20
    • Frame Size:
      A1
    • Series:
      VFD-E
    • Weight:
      2.65 LBS
    In Stock
    List Price:  $294.00
    Online Price: $147.00
    Adding to cart… The item has been added
    VIEW DETAILS
  • Delta logo 0.5HP 460V Delta VFD-E VFD, Inverter, AC Drive VFD004E43A (VFD004E43A)

    0.5HP 460V Delta VFD-E VFD, Inverter, AC Drive VFD004E43A (VFD004E43A)

    • Model:
      VFD004E43A
    • Brand:
      Delta
    • Product Condition:
      New
    • Warranty:
      2 Year
    • Horsepower Rating:
      0.5 HP
    • HP Rating @ 150% OL:
      0.5 HP
    • Rated Amps:
      1.5 A
    • Amp Rating @ 150% OL:
      1.5 A
    • Rated Voltage:
      460 V
    • Rated Input Frequency:
      60 Hz
    • Output Voltage:
      460 V
    • Output Amperage Rating:
      1.5 A
    • Phase Rating:
      3 Phase Input - 3 Phase Output
    • Constant Torque / Variable Torque:
      Constant Torque
    • Phase:
      Three Phase
    • Enclosure Rating:
      IP 20
    • Frame Size:
      A1
    • Series:
      VFD-E
    • Weight:
      2.65 LBS
    In Stock
    List Price:  $360.00
    Online Price: $180.00
    Adding to cart… The item has been added
    VIEW DETAILS
  • Delta logo 0.5HP 230V Delta VFD-E VFD, Inverter, AC Drive VFD004E23A (VFD004E23A)

    0.5HP 230V Delta VFD-E VFD, Inverter, AC Drive VFD004E23A (VFD004E23A)

    • Model:
      VFD004E23A
    • Brand:
      Delta
    • Product Condition:
      New
    • Warranty:
      2 Year
    • Horsepower Rating:
      0.5 HP
    • HP Rating @ 150% OL:
      0.5 HP
    • Rated Amps:
      2.5 A
    • Amp Rating @ 150% OL:
      2.5 A
    • Rated Voltage:
      230 V
    • Rated Input Frequency:
      60 Hz
    • Output Voltage:
      230 V
    • Output Amperage Rating:
      2.5 A
    • Phase Rating:
      3 Phase Input - 3 Phase Output
    • Constant Torque / Variable Torque:
      Constant Torque
    • Phase:
      Three Phase
    • Enclosure Rating:
      IP 20
    • Frame Size:
      A1
    • Series:
      VFD-E
    • Weight:
      2.43 LBS
    In Stock
    List Price:  $276.00
    Online Price: $138.00
    Adding to cart… The item has been added
    VIEW DETAILS
  • Delta logo 20HP 460V Delta VFD-E VFD, Inverter, AC Drive VFD150E43A (VFD150E43A)

    20HP 460V Delta VFD-E VFD, Inverter, AC Drive VFD150E43A (VFD150E43A)

    • Model:
      VFD150E43A
    • Brand:
      Delta
    • Product Condition:
      New
    • Warranty:
      2 Year
    • Horsepower Rating:
      20 HP
    • HP Rating @ 150% OL:
      20 HP
    • Rated Amps:
      32 A
    • Amp Rating @ 150% OL:
      32 A
    • Rated Voltage:
      460 V
    • Rated Input Frequency:
      60 Hz
    • Output Voltage:
      460 V
    • Output Amperage Rating:
      32 A
    • Phase Rating:
      3 Phase Input - 3 Phase Output
    • Constant Torque / Variable Torque:
      Constant Torque
    • Phase:
      Three Phase
    • Enclosure Rating:
      IP 20
    • Frame Size:
      D
    • Series:
      VFD-E
    • Weight:
      16.47 LBS
    In Stock
    List Price:  $1,750.00
    Online Price: $875.00
    Adding to cart… The item has been added
    VIEW DETAILS
  • Delta logo 2HP 230V Delta VFD-E VFD, Inverter, AC Drive VFD015E23T (VFD015E23T)

    2HP 230V Delta VFD-E VFD, Inverter, AC Drive VFD015E23T (VFD015E23T)

    • Model:
      VFD015E23P
    • Brand:
      Delta
    • Product Condition:
      New
    • Warranty:
      1 Year
    • Horsepower Rating:
      2 HP
    • HP Rating @ 150% OL:
      2 HP
    • Rated Amps:
      7.5 A
    • Amp Rating @ 150% OL:
      2 A
    • Rated Voltage:
      230 V
    • Rated Input Frequency:
      60 Hz
    • Output Voltage:
      230 V
    • Output Amperage Rating:
      7.5 A
    • Phase Rating:
      3 Phase Input - 3 Phase Output
    • Constant Torque / Variable Torque:
      Constant Torque
    • Phase:
      Three Phase
    • Enclosure Rating:
      IP 20
    • Series:
      VFD-E
    • Weight:
      4.20 LBS
    Out Of Stock
    Online Price: $190.82
    Adding to cart… The item has been added
    VIEW DETAILS
  • Delta logo 2HP 230V Delta VFD-E VFD, Inverter, AC Drive VFD015E23P (VFD015E23P)

    2HP 230V Delta VFD-E VFD, Inverter, AC Drive VFD015E23P (VFD015E23P)

    • Model:
      VFD015E23P
    • Brand:
      Delta
    • Product Condition:
      New
    • Warranty:
      1 Year
    • Horsepower Rating:
      2 HP
    • HP Rating @ 150% OL:
      2 HP
    • Rated Amps:
      7.5 A
    • Amp Rating @ 150% OL:
      2 A
    • Rated Voltage:
      230 V
    • Rated Input Frequency:
      60 Hz
    • Output Voltage:
      230 V
    • Output Amperage Rating:
      7.5 A
    • Phase Rating:
      3 Phase Input - 3 Phase Output
    • Constant Torque / Variable Torque:
      Constant Torque
    • Phase:
      Three Phase
    • Enclosure Rating:
      IP 20
    • Series:
      VFD-E
    • Weight:
      4.20 LBS
    Out Of Stock
    Online Price: $190.82
    Adding to cart… The item has been added
    VIEW DETAILS
  • Delta logo 25HP 460V Delta VFD-E VFD, Inverter, AC Drive VFD185E43A (VFD185E43A)

    25HP 460V Delta VFD-E VFD, Inverter, AC Drive VFD185E43A (VFD185E43A)

    • Model:
      VFD185E43A
    • Brand:
      Delta
    • Product Condition:
      New
    • Warranty:
      2 Year
    • Horsepower Rating:
      25 HP
    • HP Rating @ 150% OL:
      25 HP
    • Rated Amps:
      38 A
    • Amp Rating @ 150% OL:
      38 A
    • Rated Voltage:
      460 V
    • Rated Input Frequency:
      60 Hz
    • Output Voltage:
      460 V
    • Output Amperage Rating:
      38 A
    • Phase Rating:
      3 Phase Input - 3 Phase Output
    • Constant Torque / Variable Torque:
      Constant Torque
    • Phase:
      Three Phase
    • Enclosure Rating:
      IP 20
    • Frame Size:
      D
    • Series:
      VFD-E
    • Weight:
      16.47 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
