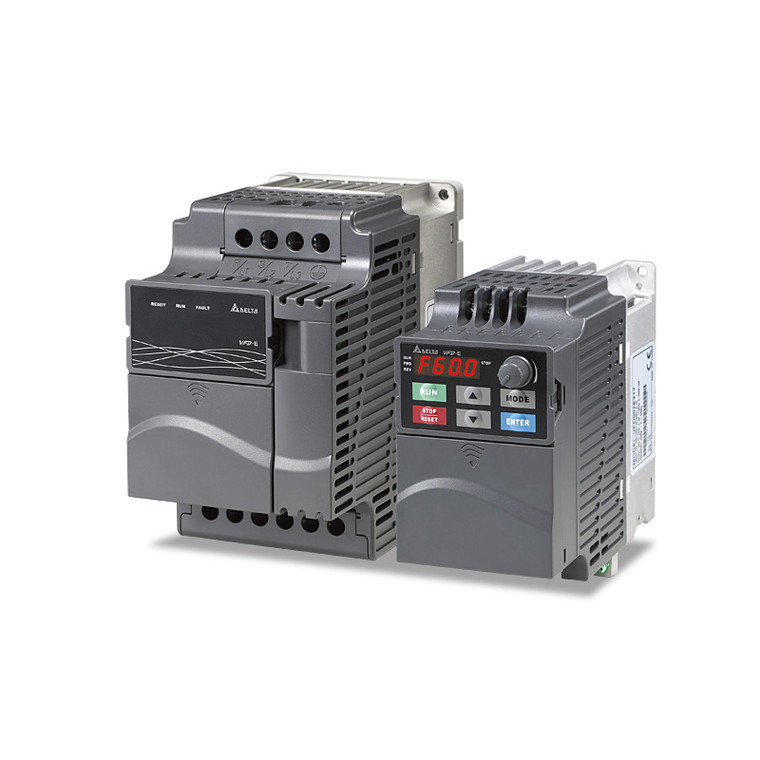

0.5HP 230V Delta VFD-E VFD, Inverter, AC Drive VFD004E23A (VFD004E23A)

0.5HP 230V Delta VFD-E VFD, Inverter, AC Drive VFD004E23A (VFD004E23A)

Brand:
Delta
Model:
VFD004E23A
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
In Stock
List Price:  $276.00
Online Price: $138.00
Adding to cart… The item has been added
  • Modular Design: Modular structure and extension with optional cards
  • Standard MODBUS Protocol: Standard MODBUS Protocol via RS-485
  • Built-in EMC Filter (230 V 1-phase and 460 V 3-phase): Reduces electromagnetic interference efficiently
  • Compact Design: Space saving and easy DIN rail mounting with optional DIN rail adapter
  • Optional Fieldbus Modules: Provide connection to a variety of networks, including PROFIBUS, DeviceNet and CANopen
  • Flexible Extension: Via optional cards, such as I/O card, Relay card, PG (Encoder) card and USB card, to meet your application requirements
  • RFI Switch for IT Mains: Removable "Y" capacitor to use with IT mains supplies
  • Easy DC Bus Sharing: Multiple VFD-E units can be connected in parallel to share regenerative braking energy. In this way, overvoltage is prevented and the DC bus voltage stabilized
  • Complete Protection Functions: High precision current detection, full overload protection (oL, oL1 and oL2), overvoltage/overcurrent stall prevention, short circuit protection, reset after fault, speed search function and motor overheat protection by PTC
  • Removable Keypad: The standard keypad acts as a status monitor. More functions, including parameter modification, RUN/STOP, speed change, and status display, are available via an optional keypad
  • Built-in PLC Function: PLC programming and editing capability without the need of a PLC
  • Easy Maintenance: Removable cooling fan for easy maintenance
Free shipping over $50*
Write a Review

Technical Specifications

Model:
VFD004E23A
Brand:
Delta
Product Condition:
New
Warranty:
2 Year
Horsepower Rating:
0.5 HP
HP Rating @ 150% OL:
0.5 HP
Rated Amps:
2.5 A
Amp Rating @ 150% OL:
2.5 A
Rated Voltage:
230 V
Rated Input Frequency:
60 Hz
Output Voltage:
230 V
Output Amperage Rating:
2.5 A
Phase Rating:
3 Phase Input - 3 Phase Output
Constant Torque / Variable Torque:
Constant Torque
Phase:
Three Phase
Enclosure Rating:
IP 20
Frame Size:
A1
Series:
VFD-E
Height:
5.59 in
Width:
2.83 in
Depth:
5.98 in

Product Information

Delta VFD-E Series

Sensorless Vector AC Micro Drive. The VFD-E series represent Delta Electronics low horsepower, constant torque, IP20 rated Drive. Modular in design with flexible extension cards and a built-in PLC function, the E drive offers the ability to write and to execute simple Ladder Logic programs. This state-of-the-art series meets a full range of application requirements.

Download Manual
