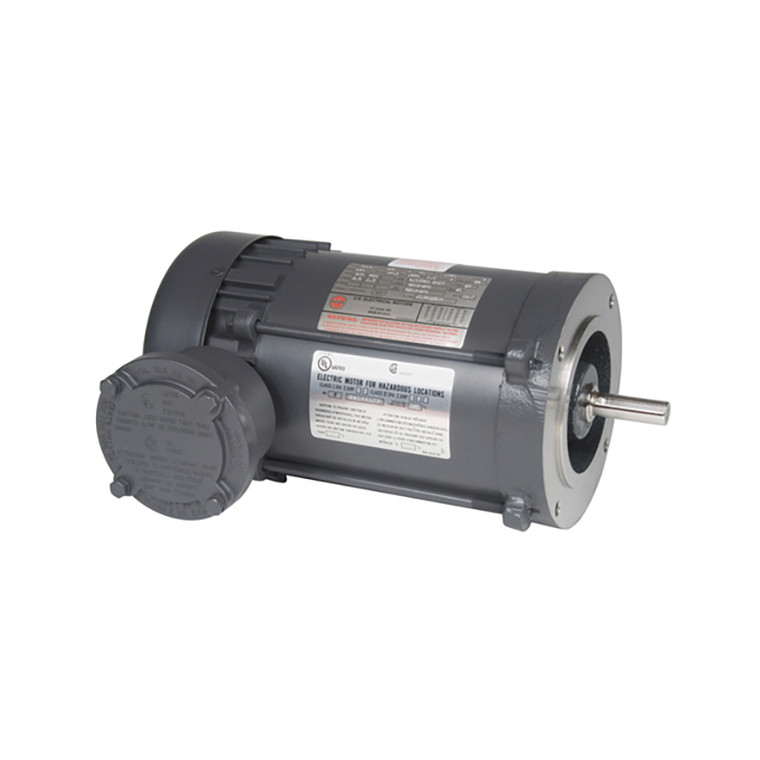

US Motors (Nidec), AC Motor, Y34S2BCR, 0.75 HP, 1800 RPM, Three Phase, 230/460 V, 60 Hz, 56C (Y34S2BCR)

US Motors (Nidec), AC Motor, Y34S2BCR, 0.75 HP, 1800 RPM, Three Phase, 230/460 V, 60 Hz, 56C (Y34S2BCR)

Brand:
US Motors (Nidec)
Model:
Y34S2BCR
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
Y34S2BCR
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
General Purpose
Horsepower Rating:
0.75 HP
Synchronous RPM:
1800 RPM
Rated RPM:
1745 RPM
Frame Size:
56C
Rated Supply Voltage:
230/460 V
Motor Design Class:
B
Full Load Torque:
2.2
Rated Voltage:
230 V
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
78.5%
C Dimension:
11.6
Bearing Type:
6203-2Z-J/C3
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
2.7/1.3 A

Product Information

US Motors (Nidec) Series

3/4 HP, 1745 RPM, Y34S2BCR, 230/460 V, 60 HZ, 56C
