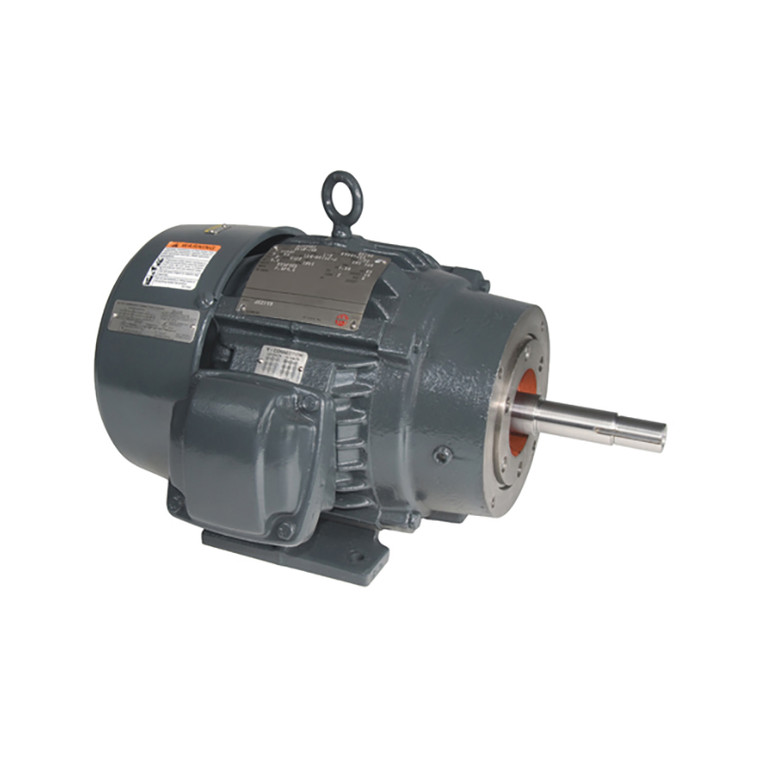

US Motors (Nidec), AC Motor, XJ3P1BM, 3 HP, 3600 RPM, Three Phase, 230/460 V, 60 Hz, 182JM (XJ3P1BM)

US Motors (Nidec), AC Motor, XJ3P1BM, 3 HP, 3600 RPM, Three Phase, 230/460 V, 60 Hz, 182JM (XJ3P1BM)

Brand:
US Motors (Nidec)
Model:
XJ3P1BM
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
XJ3P1BM
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
Pump
Horsepower Rating:
3 HP
Synchronous RPM:
3600 RPM
Rated RPM:
3520 RPM
Frame Size:
182JM
Rated Supply Voltage:
230/460 V
Motor Enclosure Type:
Totally Enclosed Fan Cooled (TEFC)
Motor Design Class:
B
Full Load Torque:
4.5
Rated Voltage:
230 V
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
86.5%
C Dimension:
18.3
Bearing Type:
6205-J/C3
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
7.8/3.9 A

Product Information

US Motors (Nidec) Series

3 HP, 3520 RPM, XJ3P1BM, 230/460 V, 60 HZ, 182JM
