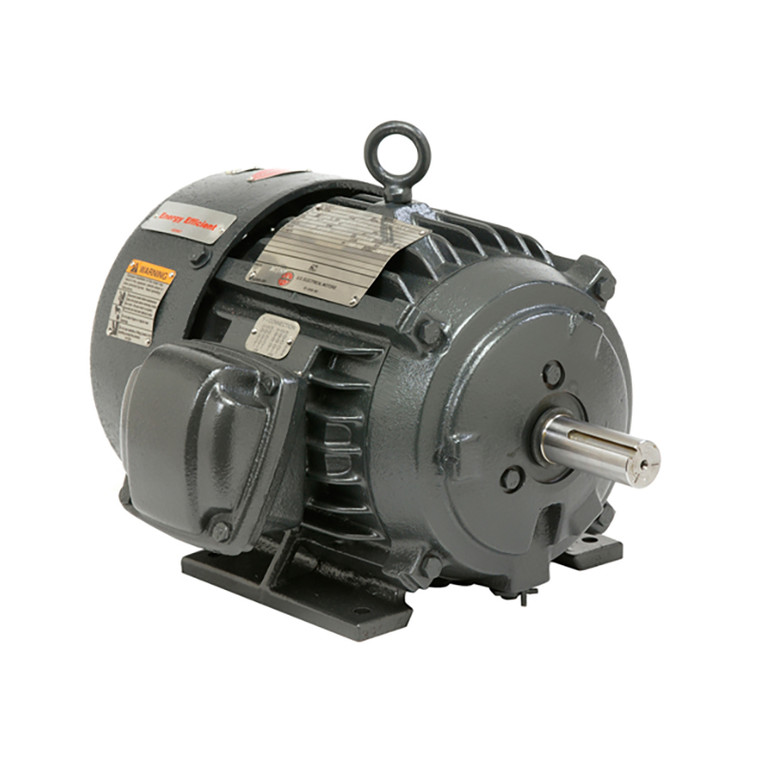

US Motors (Nidec), AC Motor, X20P3B, 20 HP, 1200 RPM, Three Phase, 230/460 V, 60 Hz, 286T (X20P3B)

US Motors (Nidec), AC Motor, X20P3B, 20 HP, 1200 RPM, Three Phase, 230/460 V, 60 Hz, 286T (X20P3B)

Brand:
US Motors (Nidec)
Model:
X20P3B
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
X20P3B
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
Explosion Proof
Horsepower Rating:
20 HP
Synchronous RPM:
1200 RPM
Rated RPM:
1180 RPM
Frame Size:
286T
Rated Supply Voltage:
230/460 V
Motor Enclosure Type:
Totally Enclosed Fan Cooled (TEFC)
Motor Design Class:
B
Full Load Torque:
89
Rated Voltage:
230 V
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1.15
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
91.7%
Construction:
Cast Iron
C Dimension:
27
Bearing Type:
6210-J/C3
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
49/24.4 A

Product Information

US Motors (Nidec) Series

20 HP, 1180 RPM, X20P3B, 230/460 V, 60 HZ, 286T
