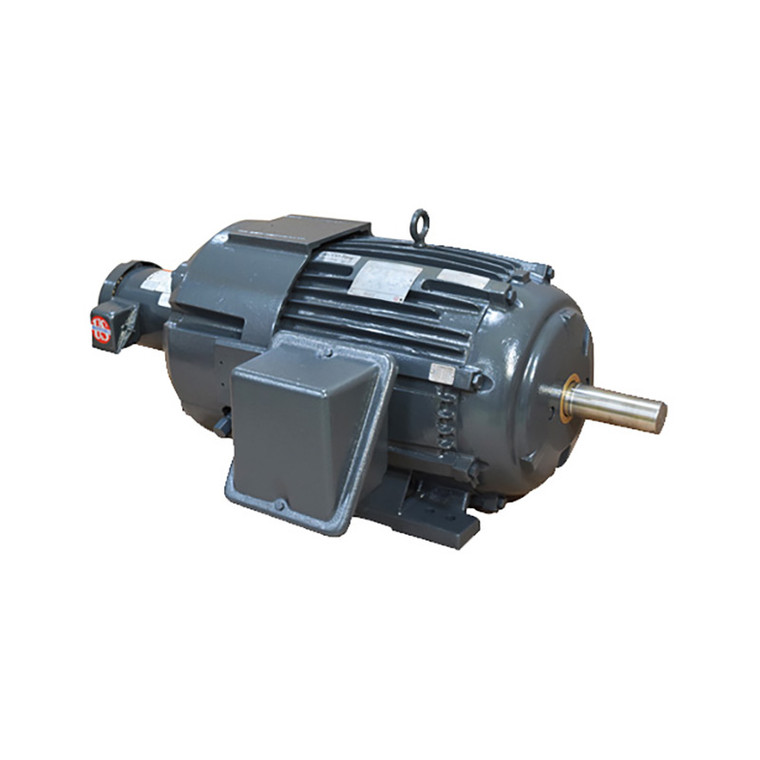

US Motors (Nidec), AC Motor, B20T3B, 20 HP, 1200 RPM, Three Phase, 230/460 V, 60 Hz, 286T (B20T3B)

US Motors (Nidec), AC Motor, B20T3B, 20 HP, 1200 RPM, Three Phase, 230/460 V, 60 Hz, 286T (B20T3B)

Brand:
US Motors (Nidec)
Model:
B20T3B
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
B20T3B
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
General Purpose
Horsepower Rating:
20 HP
Synchronous RPM:
1200 RPM
Rated RPM:
1185 RPM
Frame Size:
286T
Rated Supply Voltage:
230/460 V
Motor Enclosure Type:
Totally Enclosed Blower Cooled (TEBC)
Motor Design Class:
A
Full Load Torque:
88.6
Rated Voltage:
230 V
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1
Insulation Class:
H
Duty Cycle:
Continuous
Efficiency:
91.7%
C Dimension:
39.3
Bearing Type:
6310-J/C3
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
53/26.6 A

Product Information

US Motors (Nidec) Series

20 HP, 1185 RPM, B20T3B, 230/460 V, 60 HZ, 286T
