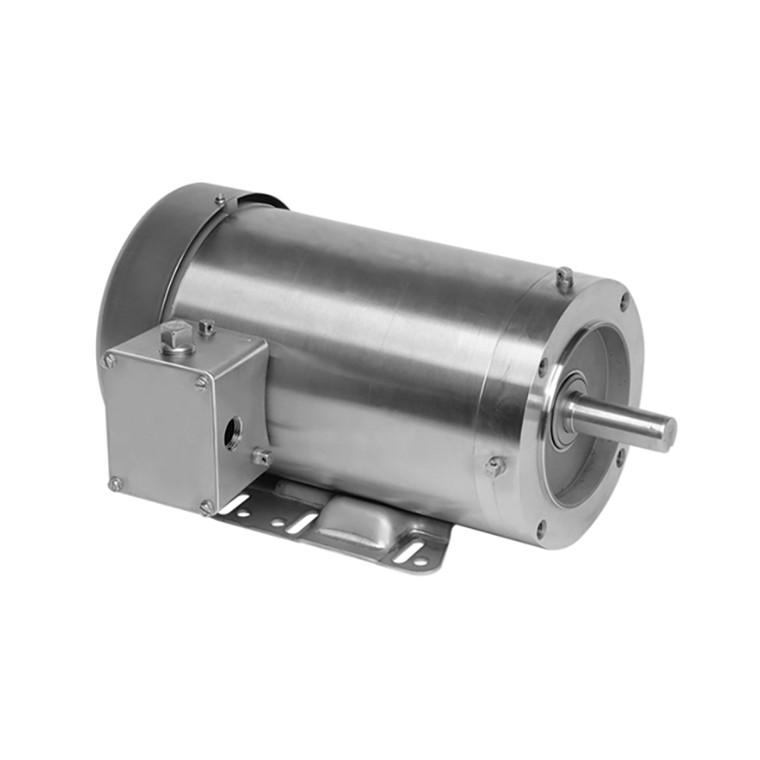

US Motors (Nidec), AC Motor, WDS12S2ACR, 0.5 HP, 1800 RPM, Three Phase, 208-230/460 V, 60 Hz, 56C (WDS12S2ACR)

US Motors (Nidec), AC Motor, WDS12S2ACR, 0.5 HP, 1800 RPM, Three Phase, 208-230/460 V, 60 Hz, 56C (WDS12S2ACR)

Brand:
US Motors (Nidec)
Model:
WDS12S2ACR
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
WDS12S2ACR
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
Washdown
Horsepower Rating:
0.5 HP
Synchronous RPM:
1800 RPM
Rated RPM:
1755 RPM
Frame Size:
56C
Rated Supply Voltage:
208-230/460 V
Motor Design Class:
B
Full Load Torque:
1.5
Rated Voltage:
208 V
Rated Voltage:
230 V
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1.15
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
78.5%
C Dimension:
11.9
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
1.8-1.9/1 A

Product Information

US Motors (Nidec) Series

1/2 HP, 1755 RPM, WDS12S2ACR, 208-230/460 V, 60 HZ, 56C
Download Brochure
Download Manual
