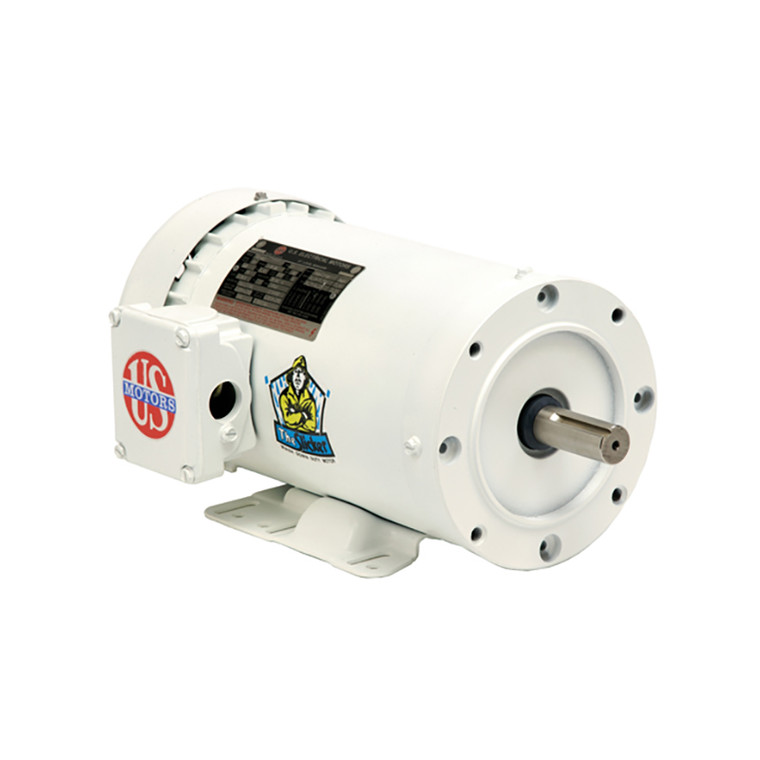

US Motors (Nidec), AC Motor, WD12S2AC, 0.5 HP, 1800 RPM, Three Phase, 208-230/460 V, 60 Hz, 56C (WD12S2AC)

Brand:
US Motors (Nidec)
Model:
WD12S2AC
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
WD12S2AC
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
Washdown
Horsepower Rating:
0.5 HP
Synchronous RPM:
1800 RPM
Rated RPM:
1725 RPM
Frame Size:
56C
Rated Supply Voltage:
208-230/460 V
Motor Enclosure Type:
Totally Enclosed Non Ventilated (TENV)
Motor Design Class:
B
Rated Voltage:
208 V
Rated Voltage:
230 V
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1.15
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
82.5%
C Dimension:
11.2
Bearing Type:
6203
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
1.9-1.8 / 0.9 A

Product Information

US Motors (Nidec) Series

1/2 HP, 1725 RPM, WD12S2AC, 208-230/460 V, 60 HZ, 56C
