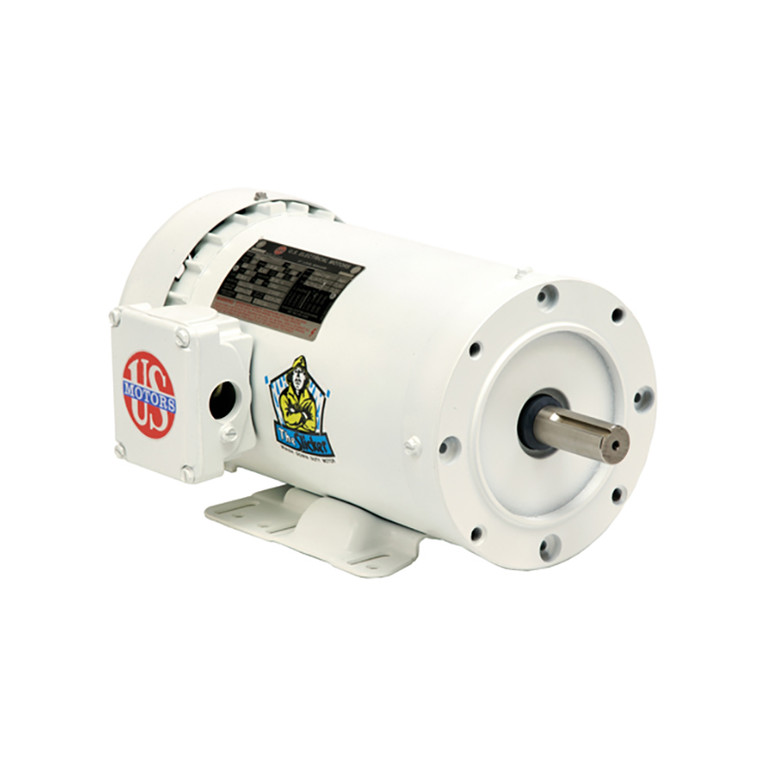

US Motors (Nidec), AC Motor, WD2S1AHC, 2 HP, 3600 RPM, Three Phase, 208-230/440 V, 60 Hz, 56HC (WD2S1AHC)

US Motors (Nidec), AC Motor, WD2S1AHC, 2 HP, 3600 RPM, Three Phase, 208-230/440 V, 60 Hz, 56HC (WD2S1AHC)

Brand:
US Motors (Nidec)
Model:
WD2S1AHC
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
WD2S1AHC
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
Washdown
Horsepower Rating:
2 HP
Synchronous RPM:
3600 RPM
Rated RPM:
3450 RPM
Frame Size:
56HC
Rated Supply Voltage:
208-230/440 V
Motor Enclosure Type:
Totally Enclosed Fan Cooled (TEFC)
Motor Design Class:
B
Rated Voltage:
208 V
Rated Voltage:
230 V
Phase:
Three Phase
Service Factor:
1.15
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
80%
C Dimension:
13.3
Bearing Type:
6203
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
6.0-5.4 / 2.7 A

Product Information

US Motors (Nidec) Series

2 HP, 3450 RPM, WD2S1AHC, 208-230/440 V, 60 HZ, 56HC
