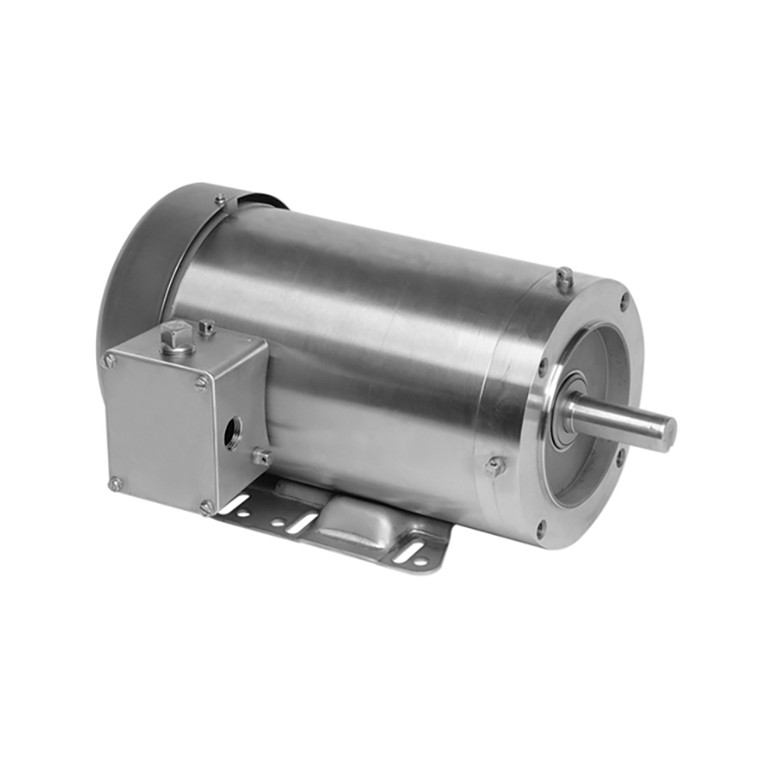

US Motors (Nidec), AC Motor, WDS32S2AFHC, 1.5 HP, 3600 RPM, Three Phase, 208-230/460 V, 60 Hz, 56HC (WDS32S2AFHC)

US Motors (Nidec), AC Motor, WDS32S2AFHC, 1.5 HP, 3600 RPM, Three Phase, 208-230/460 V, 60 Hz, 56HC (WDS32S2AFHC)

Brand:
US Motors (Nidec)
Model:
WDS32S2AFHC
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
WDS32S2AFHC
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
Washdown
Horsepower Rating:
1.5 HP
Synchronous RPM:
3600 RPM
Rated RPM:
1750 RPM
Frame Size:
56HC
Rated Supply Voltage:
208-230/460 V
Motor Enclosure Type:
Totally Enclosed Fan Cooled (TEFC)
Motor Design Class:
B
Full Load Torque:
4.5
Rated Voltage:
208 V
Rated Voltage:
230 V
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1.15
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
86.5%
C Dimension:
11.9
Bearing Type:
6203-2RS-J/C3
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
4.4-4.1/2.1 A

Product Information

US Motors (Nidec) Series

1 1/2 HP, 1750, WDS32S2AFHC, 208-230/460 V, 60 HZ, 56HC
