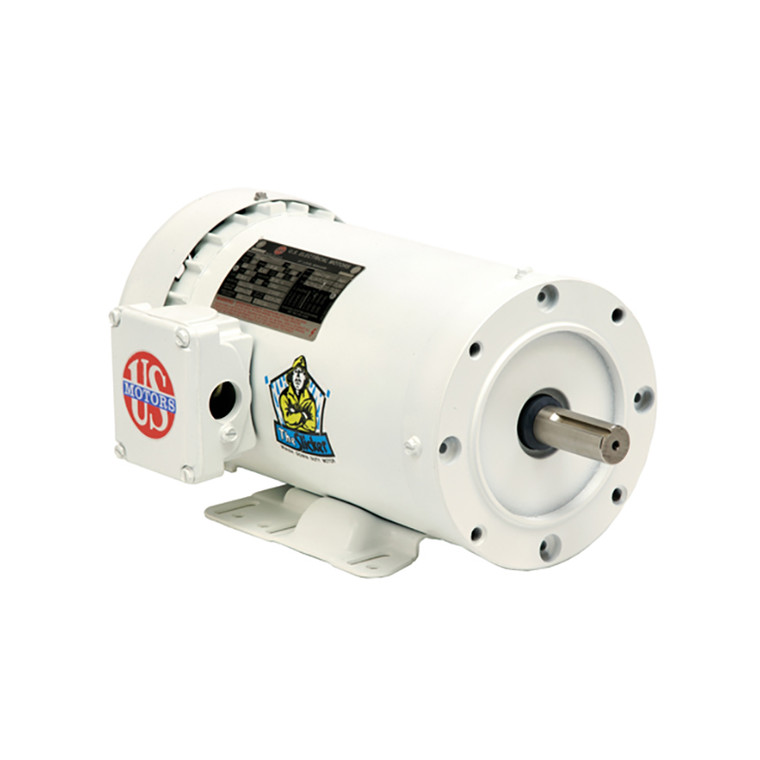

US Motors (Nidec), AC Motor, WD1C2JHC, 1 HP, 1800 RPM, Single Phase, 115/208-230 V, 60 Hz, 56HC (WD1C2JHC)

US Motors (Nidec), AC Motor, WD1C2JHC, 1 HP, 1800 RPM, Single Phase, 115/208-230 V, 60 Hz, 56HC (WD1C2JHC)

Brand:
US Motors (Nidec)
Model:
WD1C2JHC
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
WD1C2JHC
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
Washdown
Horsepower Rating:
1 HP
Synchronous RPM:
1800 RPM
Rated RPM:
1725 RPM
Frame Size:
56HC
Rated Supply Voltage:
115/208-230 V
Motor Enclosure Type:
Totally Enclosed Fan Cooled (TEFC)
Motor Design Class:
N
Full Load Torque:
48.39
Rated Voltage:
230 V
Rated Voltage:
115 V
Phase:
Single Phase
Service Factor:
1.15
Insulation Class:
F
Duty Cycle:
Continuous
C Dimension:
13.8
Bearing Type:
6203
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
15.4/7.8-7.6 A

Product Information

US Motors (Nidec) Series

1 HP, 1725 RPM, WD1C2JHC, 115/208-230 V, 60 HZ, 56HC
Download Brochure
Download Manual
