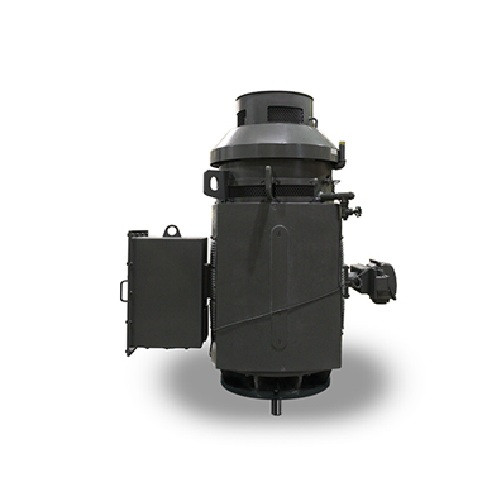

TECO VHKP3506 350 HP, 1200 RPM, 2300/4000 V, WP1, 5009 Frame, Three Phase, 60/50 Hz (VHKP3506)

Brand:
TECO
Model:
VHKP3506
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added

TECO VHKP3506:

  • 350 HP
  • 45.5 Motor FLA
  • 2300/4000 V
  • 1200 RPM
  • 5009 Frame
  • Weather Protected I (WP1)
  • Three Phase
  • 95% Efficiency
  • 75.9% Power Factor
Write a Review

Technical Specifications

Product Information

TECO Series

VERTICAL HOLLOW SHAFT WPI, HIGH THRUST

APPLICATIONS:

  • Deep Well Turbine Pumps
  • Irrigation
  • Water/Wastewater

Features

FEATURES:

  • Output Range: 200 - 1000 HP
  • Speed: 1800 & 1200 RPM
  • Enclosure: Weather Protected Type I (WPI)
  • Voltage: 2300/4000V
  • Three Phase, 60 Hz, 1.15 Service Factor (Continuous on Sine Wave Power)
  • Inverter Duty (PWM) per NEMA MG-1 Part 31 at 1.0 Service Factor
  • Standard Features: Coupling w/ Gib Key, Ball Type NRR, Drip/Splash Cover, Space Heaters (120V)
  • 5000 Frames and Above also include Mounting Provisions for bearing RTD's and Insulated Bearing Housing
  • Class F Insulation with VPI Epoxy Resin Varnish
  • Class B Temperature Rise
  • NEMA Design B Torques
  • Oversized Main Conduit Box Rotatable in 90 Degree Increments - Fully Gasketed with NPT Threaded Entrance
  • Cast Iron Conduit Box for F#449TP and Below; Steel Plate Conduit Box for F#5000
  • Designed for 40 C Ambient Temperature
  • Designed for 3300 ft. Elevation
  • Counterclockwise (CCW) Rotation; Viewed from Top
  • Cast Iron Frame & End Brackets
  • 1045 Hollow Carbon Steel Shaft
  • Suitable for Inverter Use per NEMA MG-1 Part 31.4.4.2 10:1 Variable Torque with NRR; 20:1 Variable Torque without NRR Using Braking in VFD
  • Precautions should be taken to eliminate or reduce shaft currents that may be imposed on the motor by VFD as stated per NEMA MG-1. Part 31.
