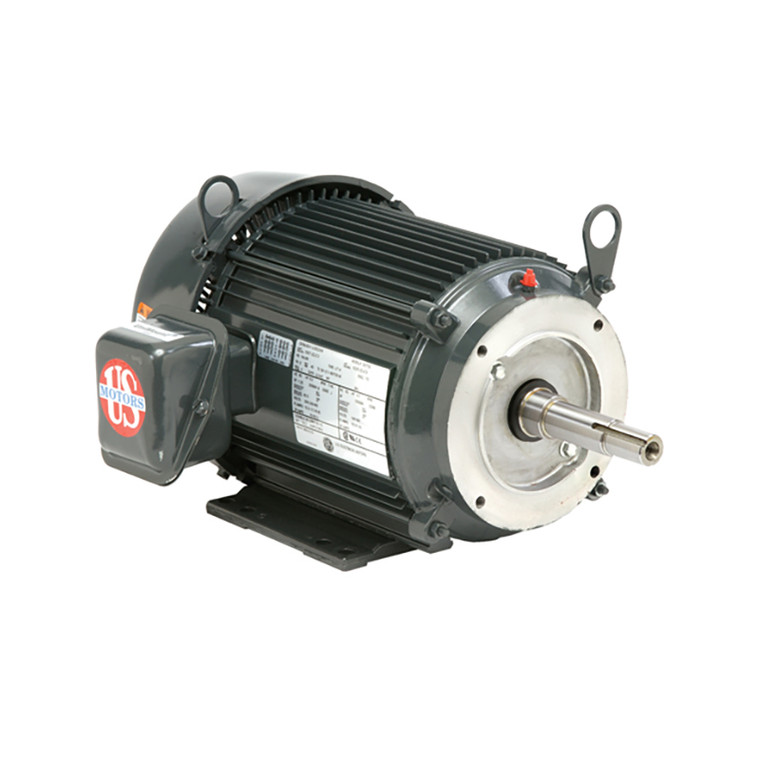

US Motors (Nidec), AC Motor, UJ5P1DP, 5 HP, 3600 RPM, Three Phase, 208-230/460 & 190/380 V, 60 , 50 Hz, 184JP (UJ5P1DP)

Brand:
US Motors (Nidec)
Model:
UJ5P1DP
Condition:
New
0 Customer Reviews
Out Of Stock
Adding to cart… The item has been added

Technical Specifications

Model:
UJ5P1DP
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
Pump
Horsepower Rating:
5 HP
Synchronous RPM:
3600 RPM
Frame Size:
184JP
Rated Supply Voltage:
208-230/460 & 190/380 V
Motor Enclosure Type:
Totally Enclosed Fan Cooled (TEFC)
Motor Design Class:
B
Full Load Torque:
7.5
Rated Voltage:
208 V
Rated Voltage:
230 V
Rated Voltage:
380 V
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1.25
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
88.5%
C Dimension:
20.8
Bearing Type:
6205-2Z-J/C3
Rated Input Frequency:
60 Hz
Rated Input Frequency:
50 Hz
Motor Full Load Amps:
13.4-12.2/6.1 A

Product Information

US Motors (Nidec) Series

5 HP, 3520 & 2890 RPM, UJ5P1DP, 208-230/460 & 190/380 V, 60 & 50 HZ, 184JP
