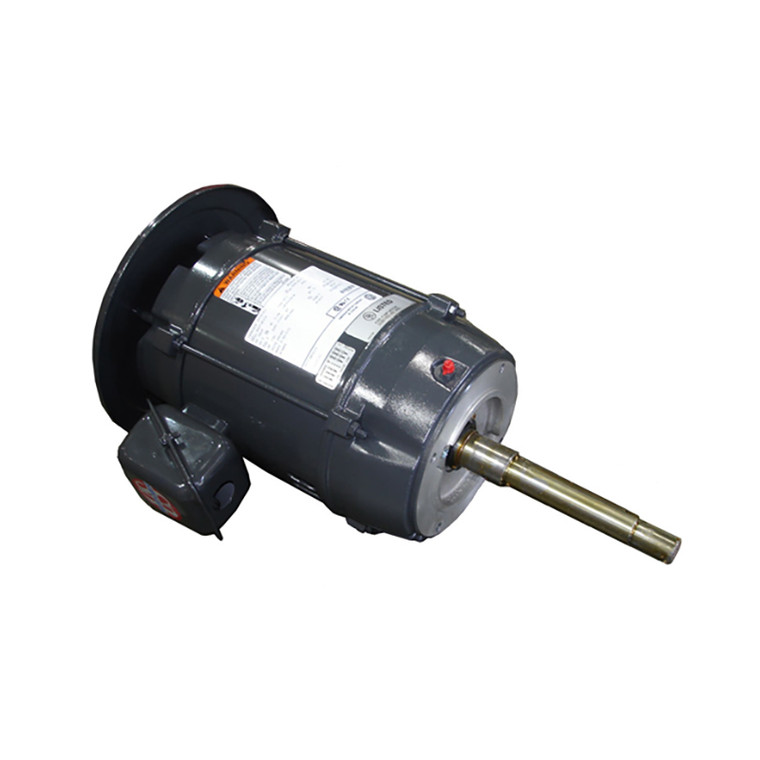

US Motors (Nidec), AC Motor, FF7E1DV, 7.5 , 5 HP, 3600 RPM, Three Phase, 208-230/460 & 190/380 V, 60 , 50 Hz, 184JP (FF7E1DV)

US Motors (Nidec), AC Motor, FF7E1DV, 7.5 , 5 HP, 3600 RPM, Three Phase, 208-230/460 & 190/380 V, 60 , 50 Hz, 184JP (FF7E1DV)

Brand:
US Motors (Nidec)
Model:
FF7E1DV
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
FF7E1DV
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
Definite Purpose
Horsepower Rating:
5 HP
Horsepower Rating:
7.5 HP
Synchronous RPM:
3600 RPM
Frame Size:
184JP
Rated Supply Voltage:
208-230/460 & 190/380 V
Motor Enclosure Type:
Open Drip Proof (ODP)
Motor Design Class:
B
Full Load Torque:
11.3
Rated Voltage:
208 V
Rated Voltage:
230 V
Rated Voltage:
380 V
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1.15
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
87.5%
Bearing Type:
6206-2Z-J/C3
Rated Input Frequency:
60 Hz
Rated Input Frequency:
50 Hz
Motor Full Load Amps:
20.4-18.1/9.1 A

Product Information

US Motors (Nidec) Series

7 1/2 & 5 HP, 3495 & 2920 RPM, FF7E1DV, 208-230/460 & 190/380 V, 60 & 50 HZ, 184JP
