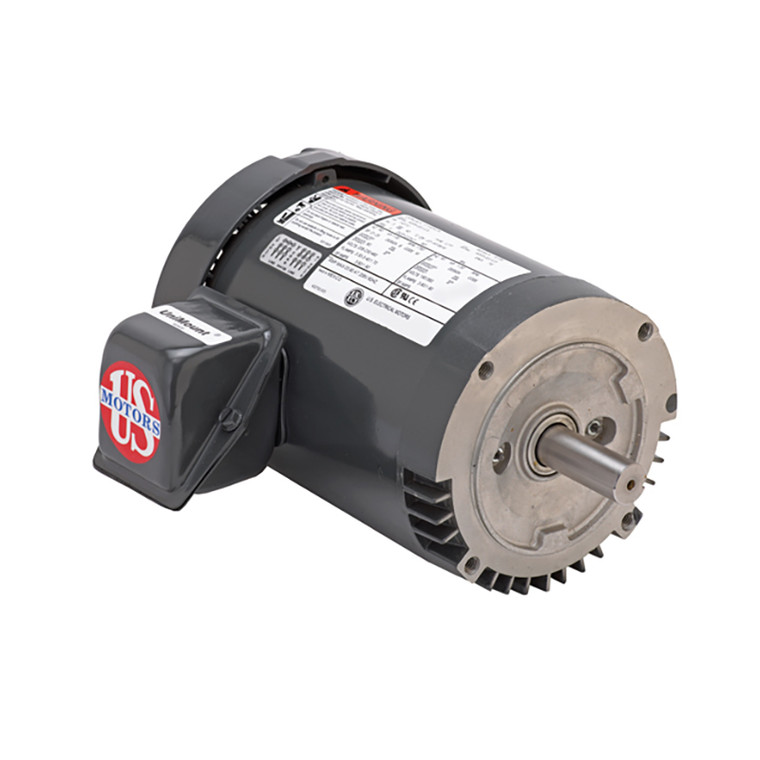

US Motors (Nidec), AC Motor, U34P1GCR, 0.75 HP, 3600 RPM, Three Phase, 575 V, 60 Hz, 56C (U34P1GCR)

US Motors (Nidec), AC Motor, U34P1GCR, 0.75 HP, 3600 RPM, Three Phase, 575 V, 60 Hz, 56C (U34P1GCR)

Brand:
US Motors (Nidec)
Model:
U34P1GCR
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
U34P1GCR
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
General Purpose
Horsepower Rating:
0.75 HP
Synchronous RPM:
3600 RPM
Rated RPM:
3505 RPM
Frame Size:
56C
Rated Supply Voltage:
575 V
Motor Enclosure Type:
Totally Enclosed Fan Cooled (TEFC)
Motor Design Class:
B
Full Load Torque:
1.1
Rated Voltage:
575 V
Phase:
Three Phase
Service Factor:
1.25
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
77%
Bearing Type:
ETO
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
0.8 A

Product Information

US Motors (Nidec) Series

3/4 HP,3505 RPM,U34P1GCR,575 V,60,56C
Download Brochure
Download Manual

Steel Edge

APPLICATIONS:

For general industrial equipment including fans, blowers, compressors, pumps and direct connected equipment.

FEATURES:

  • Rolled Steel Frame
  • Class F Insulation, Class B Rise At Full Load On 60 Hertz Sine Wave Power
  • "CE" Mark on Nameplate (140 Frame & Larger)
  • Shaft Slinger On Pulley End
  • 40°C Ambient, NEMA®† Design B Performance On 60 Hertz Sine Wave Power
  • Sine Wave Power
  • Sealed Bearings (140 Frame); Double Shielded Bearings (180 Frame and Up)
  • Dual Voltage Ratings Suitable For Part Winding Start (PWS) On Low Voltage
