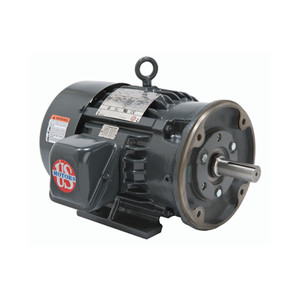

US Motors (Nidec), AC Motor, U32P1DC, 1.5 HP, 3600 RPM, Three Phase, 208-230/460 & 190/380 V, 60 , 50 Hz, 143TC (U32P1DC)

US Motors (Nidec), AC Motor, U32P1DC, 1.5 HP, 3600 RPM, Three Phase, 208-230/460 & 190/380 V, 60 , 50 Hz, 143TC (U32P1DC)

Brand:
US Motors (Nidec)
Model:
U32P1DC
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
U32P1DC
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
General Purpose
Horsepower Rating:
1.5 HP
Synchronous RPM:
3600 RPM
Frame Size:
143TC
Rated Supply Voltage:
208-230/460 & 190/380 V
Motor Enclosure Type:
Totally Enclosed Fan Cooled (TEFC)
Motor Design Class:
B
Full Load Torque:
2.2
Rated Voltage:
208 V, 230 V, 380 V, 460 V
Phase:
Three Phase
Service Factor:
1.25
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
84%
Construction:
Rolled Steel
C Dimension:
12.1
Bearing Type:
6203-2Z-J/C3
Rated Input Frequency:
60 Hz, 50 Hz
Motor Full Load Amps:
4.2-3.9/1.9 A

Product Information

US Motors (Nidec) Series

1 1/2 HP, 3505 & 2875 RPM, U32P1DC, 208-230/460 & 190/380 V, 60 & 50 HZ, 143TC
Download Brochure
Download Manual

Steel Edge

APPLICATIONS:

For general industrial equipment including fans, blowers, compressors, pumps and direct connected equipment.

FEATURES:

  • Rolled Steel Frame
  • Class F Insulation, Class B Rise At Full Load On 60 Hertz Sine Wave Power
  • "CE" Mark on Nameplate (140 Frame & Larger)
  • Shaft Slinger On Pulley End
  • 40°C Ambient, NEMA®† Design B Performance On 60 Hertz Sine Wave Power
  • Sine Wave Power
  • Sealed Bearings (140 Frame); Double Shielded Bearings (180 Frame and Up)
  • Dual Voltage Ratings Suitable For Part Winding Start (PWS) On Low Voltage
