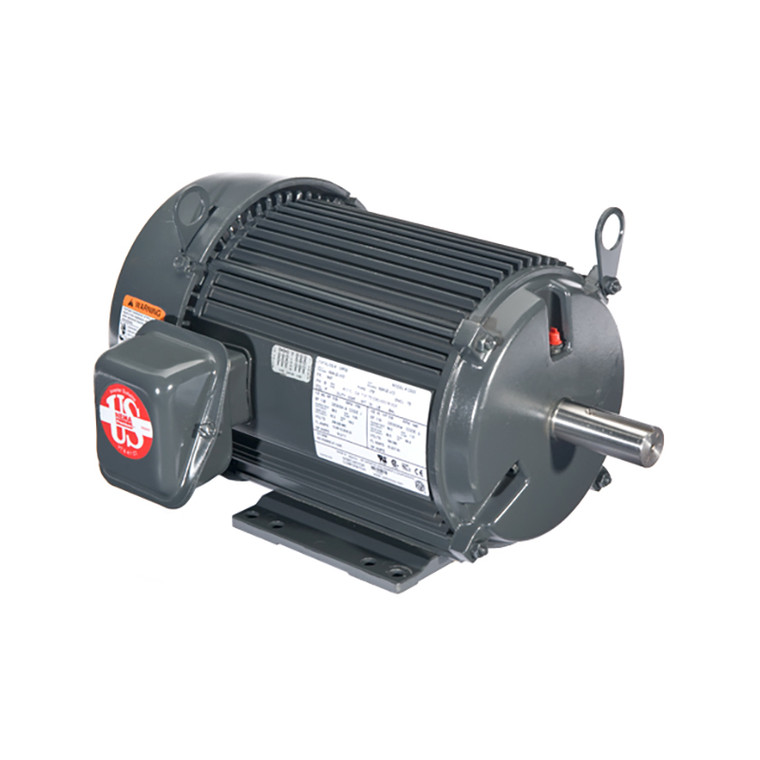

US Motors (Nidec), AC Motor, U2P4D, 2 HP, 900 RPM, Three Phase, 208-230/460 & 190/380 V, 60 , 50 Hz, 213T (U2P4D)

US Motors (Nidec), AC Motor, U2P4D, 2 HP, 900 RPM, Three Phase, 208-230/460 & 190/380 V, 60 , 50 Hz, 213T (U2P4D)

Brand:
US Motors (Nidec)
Model:
U2P4D
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Product Information

US Motors (Nidec) Series

2 HP, 865 & 700 RPM, U2P4D, 208-230/460 & 190/380 V, 60 & 50 HZ, 213T
Download Brochure
Download Manual

Unimount

APPLICATIONS:

For general industrial equipment including fans, blowers, compressors, pumps and direct connected equipment.

FEATURES:

UNIMOUNT® NEMA®†

  • Premium Efficient (Discount Symbol DS-3AL)
  • Class F Insulation, Class B Rise At Full Load On 60 Hertz Sine Wave Power
  • "CE" Mark On Nameplate
  • Shaft Slinger On Pulley End
  • Full 50 & 60 Hertz Operating Data On Nameplate (03)
  • Full HP @ 50 Hertz
  • 40°C Ambient, NEMA®† Design B Performance On 60 Hertz

Sine Wave Power

  • Sealed Bearings (140 Frame); Double Shielded Bearings (180 Frame and Up)
  • Dual Voltage Ratings Suitable For Part Winding Start (PWS) On Low Voltage
  • Suitable For Wye-Delta Start 250 Frame & Larger
  • Conversion Kits: C&D Flanges, Drip Cover and Brakes
