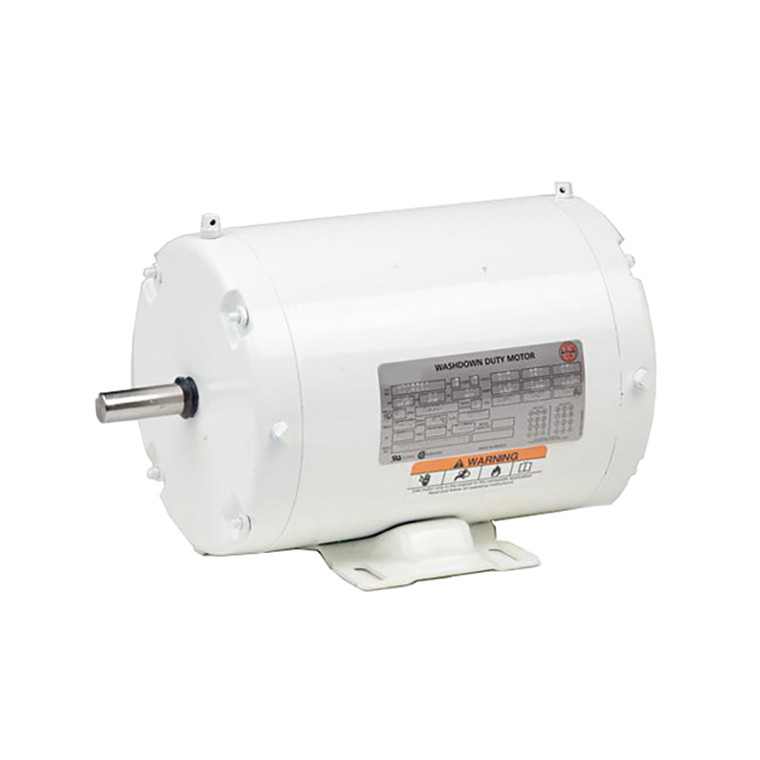

US Motors (Nidec), AC Motor, WD7P2D, 7.5 HP, 1800 RPM, Three Phase, 208-230/460 & 190/380 V, 60 , 50 Hz, 213T (WD7P2D)

US Motors (Nidec), AC Motor, WD7P2D, 7.5 HP, 1800 RPM, Three Phase, 208-230/460 & 190/380 V, 60 , 50 Hz, 213T (WD7P2D)

Brand:
US Motors (Nidec)
Model:
WD7P2D
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
WD7P2D
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
Washdown
Horsepower Rating:
7.5 HP
Synchronous RPM:
1800 RPM
Frame Size:
213T
Rated Supply Voltage:
208-230/460 & 190/380 V
Motor Enclosure Type:
Totally Enclosed Fan Cooled (TEFC)
Motor Design Class:
B
Full Load Torque:
22.3
Rated Voltage:
208 V
Rated Voltage:
230 V
Rated Voltage:
380 V
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1.15
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
91.7%
C Dimension:
18.2
Bearing Type:
6205-2RS-J/C3
Rated Input Frequency:
60 Hz
Rated Input Frequency:
50 Hz
Motor Full Load Amps:
20-18.2/9.1 A

Product Information

US Motors (Nidec) Series

7 1/2 HP, 1765 & 1450 RPM, WD7P2D, 208-230/460 & 190/380 V, 60 & 50 HZ, 213T
