Titan

Titan

APPLICATIONS:

For pulp & paper, mill & chemical and any other severe duty environments found in the process industries.

  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, C600P2W, 600 HP, 1800 RPM, Three Phase, 2300/4000 V, 60 Hz, 5012S (C600P2W)

    US Motors (Nidec), AC Motor, C600P2W, 600 HP, 1800 RPM, Three Phase, 2300/4000 V, 60 Hz, 5012S (C600P2W)

    • Model:
      C600P2W
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      General Purpose
    • Horsepower Rating:
      600 HP
    • Synchronous RPM:
      1800 RPM
    • Rated RPM:
      1790 RPM
    • Frame Size:
      5012S
    • Rated Supply Voltage:
      2300/4000 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Full Load Torque:
      1762.6
    • Rated Voltage:
      2300 V
    • Rated Voltage:
      4160 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      96.2%
    • Construction:
      Cast Iron
    • C Dimension:
      75.6
    • Bearing Type:
      6315-J/C3
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      134/77 A
    • Weight:
      6.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, C600P1WS, 600 HP, 3600 RPM, Three Phase, 2300/4000 V, 60 Hz, 5012S (C600P1WS)

    US Motors (Nidec), AC Motor, C600P1WS, 600 HP, 3600 RPM, Three Phase, 2300/4000 V, 60 Hz, 5012S (C600P1WS)

    • Model:
      C600P1WS
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      General Purpose
    • Horsepower Rating:
      600 HP
    • Synchronous RPM:
      3600 RPM
    • Rated RPM:
      3570 RPM
    • Frame Size:
      5012S
    • Rated Supply Voltage:
      2300/4000 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Full Load Torque:
      882.8
    • Rated Voltage:
      2300 V
    • Rated Voltage:
      4160 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      95.4%
    • Construction:
      Cast Iron
    • C Dimension:
      75.6
    • Bearing Type:
      6315-J/C3
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      130/75 A
    • Weight:
      6.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, C500P3WB, 500 HP, 1200 RPM, Three Phase, 2300/4000 V, 60 Hz, 5012ML (C500P3WB)

    US Motors (Nidec), AC Motor, C500P3WB, 500 HP, 1200 RPM, Three Phase, 2300/4000 V, 60 Hz, 5012ML (C500P3WB)

    • Model:
      C500P3WB
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      General Purpose
    • Horsepower Rating:
      500 HP
    • Synchronous RPM:
      1200 RPM
    • Rated RPM:
      1190 RPM
    • Frame Size:
      5012ML
    • Rated Supply Voltage:
      2300/4000 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Full Load Torque:
      2208.7
    • Rated Voltage:
      2300 V
    • Rated Voltage:
      4160 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      95.8%
    • Construction:
      Cast Iron
    • C Dimension:
      81.5
    • Bearing Type:
      6315-J/C3
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      116/67 A
    • Weight:
      6.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, C500P2W, 500 HP, 1800 RPM, Three Phase, 2300/4000 V, 60 Hz, 5012S (C500P2W)

    US Motors (Nidec), AC Motor, C500P2W, 500 HP, 1800 RPM, Three Phase, 2300/4000 V, 60 Hz, 5012S (C500P2W)

    • Model:
      C500P2W
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      General Purpose
    • Horsepower Rating:
      500 HP
    • Synchronous RPM:
      1800 RPM
    • Rated RPM:
      1785 RPM
    • Frame Size:
      5012S
    • Rated Supply Voltage:
      2300/4000 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      1469.8
    • Rated Voltage:
      2300 V
    • Rated Voltage:
      4160 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      95.8%
    • Construction:
      Cast Iron
    • C Dimension:
      75.6
    • Bearing Type:
      6315-J/C3
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      113/65 A
    • Weight:
      6.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, C500P1WS, 500 HP, 3600 RPM, Three Phase, 2300/4000 V, 60 Hz, 5012S (C500P1WS)

    US Motors (Nidec), AC Motor, C500P1WS, 500 HP, 3600 RPM, Three Phase, 2300/4000 V, 60 Hz, 5012S (C500P1WS)

    • Model:
      C500P1WS
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      General Purpose
    • Horsepower Rating:
      500 HP
    • Synchronous RPM:
      3600 RPM
    • Rated RPM:
      3565 RPM
    • Frame Size:
      5012S
    • Rated Supply Voltage:
      2300/4000 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      736.2
    • Rated Voltage:
      2300 V
    • Rated Voltage:
      4160 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      95%
    • Construction:
      Cast Iron
    • C Dimension:
      75.6
    • Bearing Type:
      6315-J/C3
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      109/63 A
    • Weight:
      6.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, C450P3WB, 450 HP, 1200 RPM, Three Phase, 2300/4000 V, 60 Hz, 5012ML (C450P3WB)

    US Motors (Nidec), AC Motor, C450P3WB, 450 HP, 1200 RPM, Three Phase, 2300/4000 V, 60 Hz, 5012ML (C450P3WB)

    • Model:
      C450P3WB
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      General Purpose
    • Horsepower Rating:
      450 HP
    • Synchronous RPM:
      1200 RPM
    • Rated RPM:
      1190 RPM
    • Frame Size:
      5012ML
    • Rated Supply Voltage:
      2300/4000 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Full Load Torque:
      1989.4
    • Rated Voltage:
      2300 V
    • Rated Voltage:
      4160 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      95.4%
    • Construction:
      Cast Iron
    • C Dimension:
      81.5
    • Bearing Type:
      6315-J/C3
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      105/60 A
    • Weight:
      6.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, C450P2W, 450 HP, 1800 RPM, Three Phase, 2300/4000 V, 60 Hz, 5010S (C450P2W)

    US Motors (Nidec), AC Motor, C450P2W, 450 HP, 1800 RPM, Three Phase, 2300/4000 V, 60 Hz, 5010S (C450P2W)

    • Model:
      C450P2W
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      General Purpose
    • Horsepower Rating:
      450 HP
    • Synchronous RPM:
      1800 RPM
    • Rated RPM:
      1785 RPM
    • Frame Size:
      5010S
    • Rated Supply Voltage:
      2300/4000 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      1322.6
    • Rated Voltage:
      2300 V
    • Rated Voltage:
      4160 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      95.4%
    • Construction:
      Cast Iron
    • C Dimension:
      67.6
    • Bearing Type:
      6315-J/C3
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      103/59 A
    • Weight:
      4.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, C450P1WS, 450 HP, 3600 RPM, Three Phase, 2300/4000 V, 60 Hz, 5012S (C450P1WS)

    US Motors (Nidec), AC Motor, C450P1WS, 450 HP, 3600 RPM, Three Phase, 2300/4000 V, 60 Hz, 5012S (C450P1WS)

    • Model:
      C450P1WS
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      General Purpose
    • Horsepower Rating:
      450 HP
    • Synchronous RPM:
      3600 RPM
    • Rated RPM:
      3570 RPM
    • Frame Size:
      5012S
    • Rated Supply Voltage:
      2300/4000 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      662.3
    • Rated Voltage:
      2300 V
    • Rated Voltage:
      4160 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      95%
    • Construction:
      Cast Iron
    • C Dimension:
      75.6
    • Bearing Type:
      6315-J/C3
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      98/57 A
    • Weight:
      6.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, C400P3WB, 400 HP, 1200 RPM, Three Phase, 2300/4000 V, 60 Hz, 5010ML (C400P3WB)

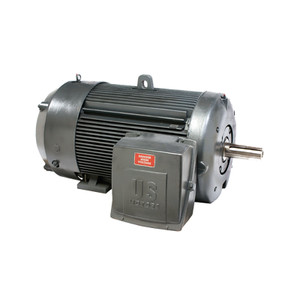

    US Motors (Nidec), AC Motor, C400P3WB, 400 HP, 1200 RPM, Three Phase, 2300/4000 V, 60 Hz, 5010ML (C400P3WB)

    • Model:
      C400P3WB
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      General Purpose
    • Horsepower Rating:
      400 HP
    • Synchronous RPM:
      1200 RPM
    • Rated RPM:
      1190 RPM
    • Frame Size:
      5010ML
    • Rated Supply Voltage:
      2300/4000 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Full Load Torque:
      1768.4
    • Rated Voltage:
      2300 V
    • Rated Voltage:
      4160 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      95%
    • Construction:
      Cast Iron
    • C Dimension:
      73.5
    • Bearing Type:
      6315-J/C3
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      95/54 A
    • Weight:
      4.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, C400P2W, 400 HP, 1800 RPM, Three Phase, 2300/4000 V, 60 Hz, 5010S (C400P2W)

    US Motors (Nidec), AC Motor, C400P2W, 400 HP, 1800 RPM, Three Phase, 2300/4000 V, 60 Hz, 5010S (C400P2W)

    • Model:
      C400P2W
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      General Purpose
    • Horsepower Rating:
      400 HP
    • Synchronous RPM:
      1800 RPM
    • Rated RPM:
      1785 RPM
    • Frame Size:
      5010S
    • Rated Supply Voltage:
      2300/4000 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      1175.5
    • Rated Voltage:
      2300 V
    • Rated Voltage:
      4160 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      95.4%
    • Construction:
      Cast Iron
    • C Dimension:
      67.6
    • Bearing Type:
      6315-J/C3
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      92/53 A
    • Weight:
      4.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, C400P1WS, 400 HP, 3600 RPM, Three Phase, 2300/4000 V, 60 Hz, 5010S (C400P1WS)

    US Motors (Nidec), AC Motor, C400P1WS, 400 HP, 3600 RPM, Three Phase, 2300/4000 V, 60 Hz, 5010S (C400P1WS)

    • Model:
      C400P1WS
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      General Purpose
    • Horsepower Rating:
      400 HP
    • Synchronous RPM:
      3600 RPM
    • Rated RPM:
      3570 RPM
    • Frame Size:
      5010S
    • Rated Supply Voltage:
      2300/4000 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      588.3
    • Rated Voltage:
      2300 V
    • Rated Voltage:
      4160 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      95%
    • Construction:
      Cast Iron
    • C Dimension:
      67.6
    • Bearing Type:
      6315-J/C3
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      88/51 A
    • Weight:
      4.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
  • US Motors (Nidec) logo US Motors (Nidec), AC Motor, C350P3WB, 350 HP, 1200 RPM, Three Phase, 2300/4000 V, 60 Hz, 5010ML (C350P3WB)

    US Motors (Nidec), AC Motor, C350P3WB, 350 HP, 1200 RPM, Three Phase, 2300/4000 V, 60 Hz, 5010ML (C350P3WB)

    • Model:
      C350P3WB
    • Brand:
      US Motors (Nidec)
    • Product Condition:
      New
    • Motor Type:
      General Purpose
    • Horsepower Rating:
      350 HP
    • Synchronous RPM:
      1200 RPM
    • Rated RPM:
      1190 RPM
    • Frame Size:
      5010ML
    • Rated Supply Voltage:
      2300/4000 V
    • Motor Enclosure Type:
      Totally Enclosed Fan Cooled (TEFC)
    • Motor Design Class:
      B
    • Full Load Torque:
      1547.3
    • Rated Voltage:
      2300 V
    • Rated Voltage:
      4160 V
    • Phase:
      Three Phase
    • Service Factor:
      1.15
    • Insulation Class:
      F
    • Duty Cycle:
      Continuous
    • Efficiency:
      95%
    • Construction:
      Cast Iron
    • C Dimension:
      73.5
    • Bearing Type:
      6315-J/C3
    • Rated Input Frequency:
      60 Hz
    • Motor Full Load Amps:
      83/48 A
    • Weight:
      4.00 LBS
    Out Of Stock
    Call for Price
    Adding to cart… The item has been added
    VIEW DETAILS
