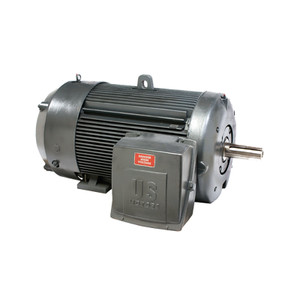

US Motors (Nidec), AC Motor, C500P3WB, 500 HP, 1200 RPM, Three Phase, 2300/4000 V, 60 Hz, 5012ML (C500P3WB)

US Motors (Nidec), AC Motor, C500P3WB, 500 HP, 1200 RPM, Three Phase, 2300/4000 V, 60 Hz, 5012ML (C500P3WB)

Brand:
US Motors (Nidec)
Model:
C500P3WB
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Product Information

US Motors (Nidec) Series

500 HP, 1190 RPM, C500P3WB, 2300/4000 V, 60 HZ, 5012ML
Download Brochure
Download Manual

Titan

APPLICATIONS:

For pulp & paper, mill & chemical and any other severe duty environments found in the process industries.

FEATURES:

  • 1 .15 Service Factor
  • Class B Temperature Rise At Full Load (1 .0 S .F .)
  • NEMA Design B (Where Applicable)
  • CORRO-DUTY® (Includes All Cast Iron Construction)
  • Shaft Slinger/Umbrella Seal On Both Ends (IP54)
  • Stainless Steel Drains – Both Ends
  • Oversized Main Conduit Box
  • Ground Lug In Conduit Box
  • Grounding Pad On Frame
  • Special Balance
  • Two Hole Lead Lugs
  • 115V Space Heaters
  • 100 Ohm Winding RTDs (2/ph .) Terminated In Auxiliary Box
  • Vertical Jacking Provisions
  • Provisions For Bearing RTDs (1/bearing)
  • Insulated Bearing On Opposite Drive End
  • Short Commercial Test Report
