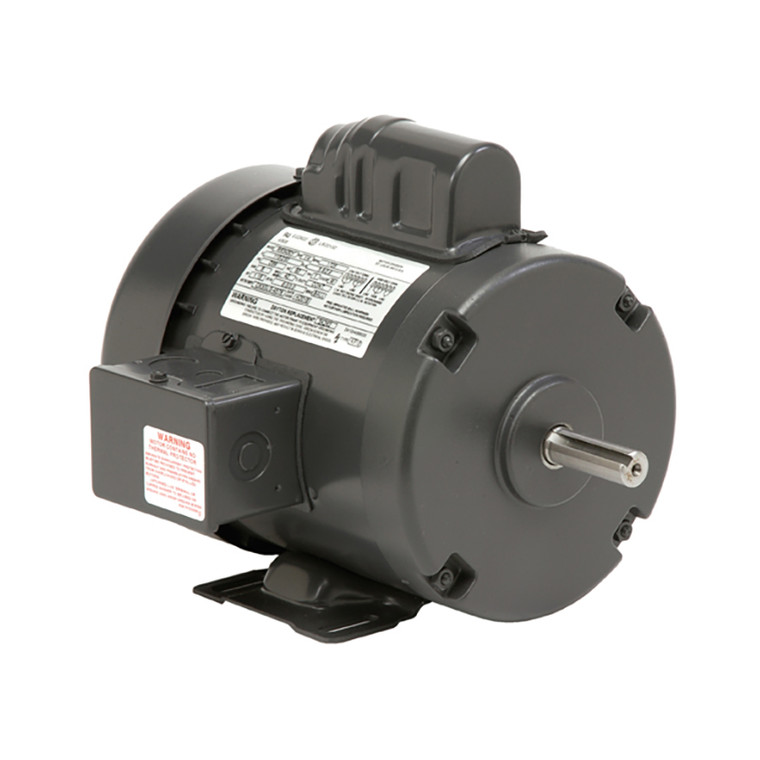

US Motors (Nidec), AC Motor, T34C2Z, 0.75 HP, 1800 RPM, Single Phase, 100-120 & 200-240 V, 60 , 50 Hz, 56 (T34C2Z)

US Motors (Nidec), AC Motor, T34C2Z, 0.75 HP, 1800 RPM, Single Phase, 100-120 & 200-240 V, 60 , 50 Hz, 56 (T34C2Z)

Brand:
US Motors (Nidec)
Model:
T34C2Z
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
T34C2Z
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
General Purpose
Horsepower Rating:
0.75 HP
Synchronous RPM:
1800 RPM
Frame Size:
56
Rated Supply Voltage:
100-120 & 200-240 V
Motor Enclosure Type:
Totally Enclosed Fan Cooled (TEFC)
Full Load Torque:
36.5
Rated Voltage:
230 V
Rated Voltage:
115 V
Phase:
Single Phase
Service Factor:
1.25
Insulation Class:
B
Duty Cycle:
Continuous
C Dimension:
11.9
Bearing Type:
6203
Rated Input Frequency:
60 Hz
Rated Input Frequency:
50 Hz
Motor Full Load Amps:
9.2-8.4/4.6-4.2 A

Product Information

US Motors (Nidec) Series

3/4 HP, 1725 & 1425 RPM, T34C2Z, 100-120 & 200-240 V, 60 & 50 HZ, 56
