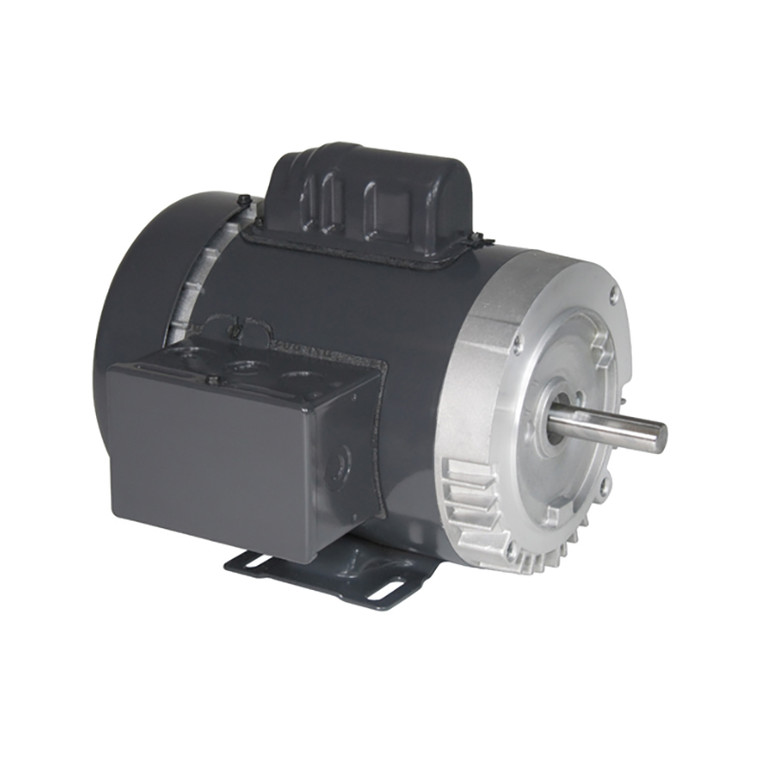

US Motors (Nidec), AC Motor, T1CA2ZC, 1 HP, 1800 RPM, Single Phase, 100-120 & 200-240 V, 60 , 50 Hz, 56C (T1CA2ZC)

US Motors (Nidec), AC Motor, T1CA2ZC, 1 HP, 1800 RPM, Single Phase, 100-120 & 200-240 V, 60 , 50 Hz, 56C (T1CA2ZC)

Brand:
US Motors (Nidec)
Model:
T1CA2ZC
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
T1CA2ZC
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
General Purpose
Horsepower Rating:
1 HP
Synchronous RPM:
1800 RPM
Frame Size:
56C
Rated Supply Voltage:
100-120 & 200-240 V
Motor Enclosure Type:
Totally Enclosed Fan Cooled (TEFC)
Full Load Torque:
58.95
Rated Voltage:
208 V
Rated Voltage:
230 V
Rated Voltage:
115 V
Phase:
Single Phase
Service Factor:
1.15
Insulation Class:
B
Duty Cycle:
Continuous
C Dimension:
13.3
Bearing Type:
6203
Rated Input Frequency:
60 Hz
Rated Input Frequency:
50 Hz
Motor Full Load Amps:
11.0-9.2/5.5-4.7 A

Product Information

US Motors (Nidec) Series

1 HP, 1725 & 1425 RPM, T1CA2ZC, 100-120 & 200-240 V, 60 & 50 HZ, 56C
