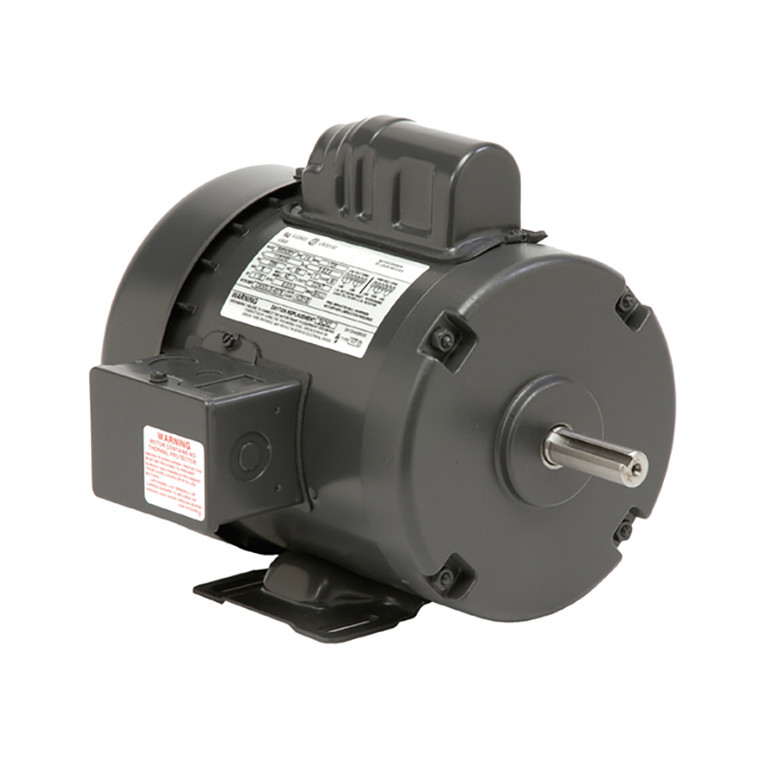

US Motors (Nidec), AC Motor, T14C3J, 0.25 HP, 1200 RPM, Single Phase, 115/208-230 V, 60 Hz, 56 (T14C3J)

Brand:
US Motors (Nidec)
Model:
T14C3J
Condition:
New
0 Customer Reviews
Out Of Stock
Adding to cart… The item has been added

Technical Specifications

Model:
T14C3J
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
General Purpose
Horsepower Rating:
0.25 HP
Synchronous RPM:
1200 RPM
Rated RPM:
1140 RPM
Frame Size:
56
Rated Supply Voltage:
115/208-230 V
Motor Enclosure Type:
Totally Enclosed Fan Cooled (TEFC)
Rated Voltage:
230 V
Rated Voltage:
115 V
Phase:
Single Phase
Service Factor:
1.15
Insulation Class:
B
Duty Cycle:
Continuous
C Dimension:
11.3
Bearing Type:
6203
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
6.4/3.0-3.2 A

Product Information

US Motors (Nidec) Series

1/4 HP, 1140 RPM, T14C3J, 115/208-230 V, 60 HZ, 56
