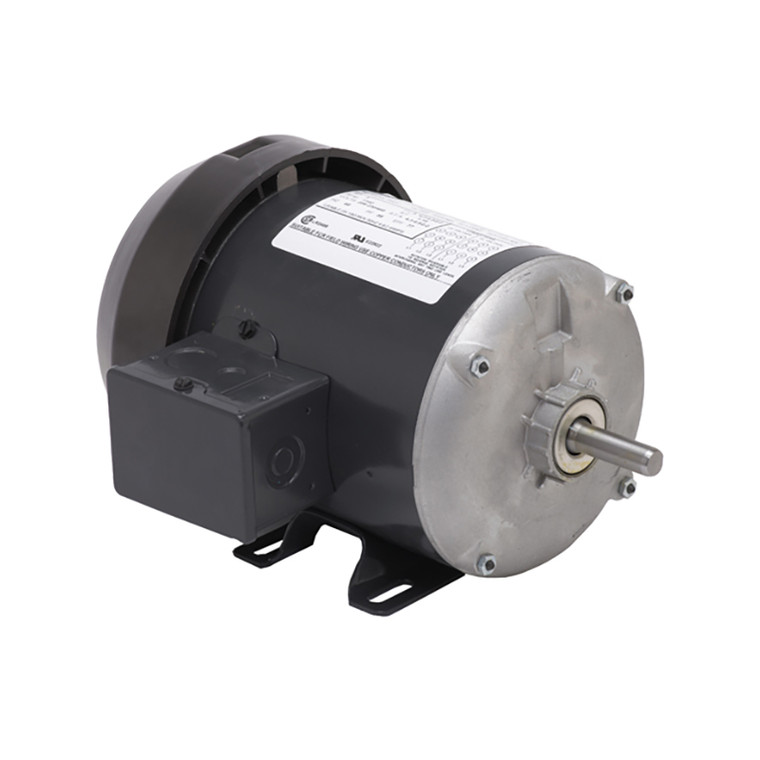

US Motors (Nidec), AC Motor, T14B3P9, 0.25 HP, 1200 RPM, Single Phase, 115/230 V, 60 Hz, 56 (T14B3P9)

US Motors (Nidec), AC Motor, T14B3P9, 0.25 HP, 1200 RPM, Single Phase, 115/230 V, 60 Hz, 56 (T14B3P9)

Brand:
US Motors (Nidec)
Model:
T14B3P9
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
T14B3P9
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
General Purpose
Horsepower Rating:
0.25 HP
Synchronous RPM:
1200 RPM
Rated RPM:
1140 RPM
Frame Size:
56
Rated Supply Voltage:
115/230 V
Motor Enclosure Type:
Totally Enclosed Fan Cooled (TEFC)
Full Load Torque:
18.11
Rated Voltage:
230 V
Rated Voltage:
115 V
Phase:
Single Phase
Service Factor:
1
Insulation Class:
B
Duty Cycle:
Continuous
C Dimension:
9.8
Bearing Type:
BALL
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
5.8/2.9 A

Product Information

US Motors (Nidec) Series

1/4 HP, 1140 RPM, T14B3P9, 115/230 V, 60 HZ, 56
