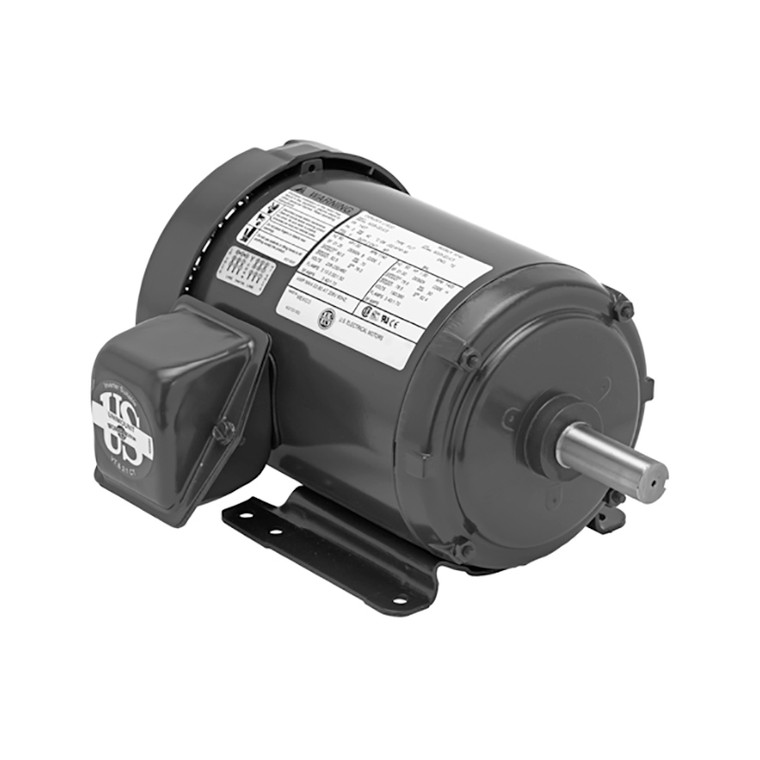

US Motors (Nidec), AC Motor, T12S1D4, 0.5 HP, 3600 RPM, Three Phase, 208-230/460 V, 60 Hz, 48 (T12S1D4)

Brand:
US Motors (Nidec)
Model:
T12S1D4
Condition:
New
0 Customer Reviews
Out Of Stock
Adding to cart… The item has been added

Technical Specifications

Model:
T12S1D4
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
General Purpose
Horsepower Rating:
0.5 HP
Synchronous RPM:
3600 RPM
Rated RPM:
3450 RPM
Frame Size:
48
Rated Supply Voltage:
208-230/460 V
Motor Enclosure Type:
Totally Enclosed Fan Cooled (TEFC)
Full Load Torque:
12.2
Rated Voltage:
208 V
Rated Voltage:
230 V
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1
Insulation Class:
B
Duty Cycle:
Continuous
Efficiency:
76%
C Dimension:
10.6
Bearing Type:
BALL
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
1.8-1.8/0.90 A

Product Information

US Motors (Nidec) Series

1/2 HP, 3450 RPM, T12S1D4, 208-230/460 V, 60 HZ, 48

Steel Edge

APPLICATIONS:

For general industrial equipment including fans, blowers, compressors, pumps and direct connected equipment.

FEATURES:

  • Rolled Steel Frame
  • Class F Insulation, Class B Rise At Full Load On 60 Hertz Sine Wave Power
  • "CE" Mark on Nameplate (140 Frame & Larger)
  • Shaft Slinger On Pulley End
  • 40°C Ambient, NEMA®† Design B Performance On 60 Hertz Sine Wave Power
  • Sine Wave Power
  • Sealed Bearings (140 Frame); Double Shielded Bearings (180 Frame and Up)
  • Dual Voltage Ratings Suitable For Part Winding Start (PWS) On Low Voltage
