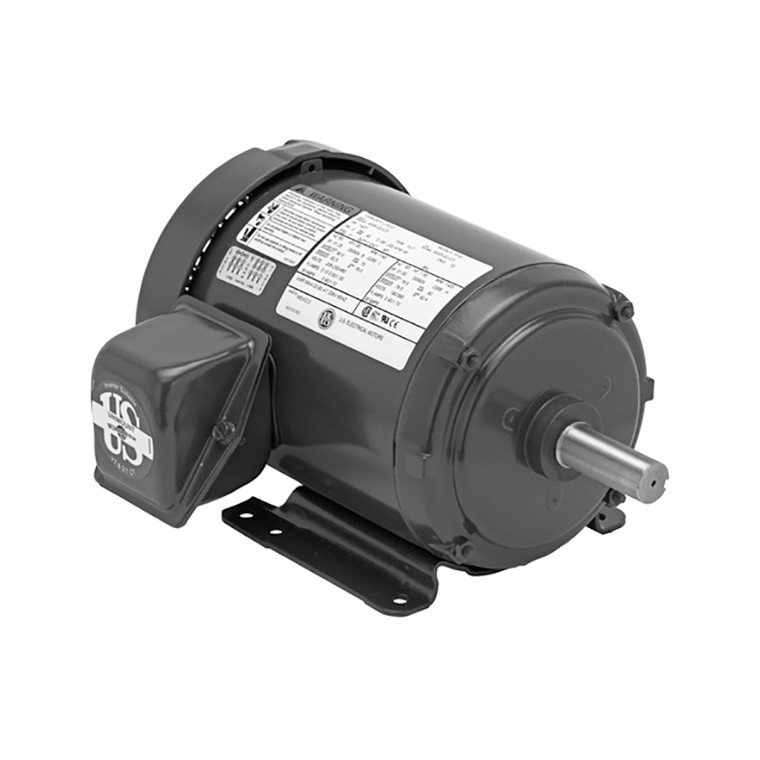

US Motors (Nidec), AC Motor, S7P2A, 7.5 HP, 1800 RPM, Three Phase, 208-230/460 V, 60 Hz, 213T (S7P2A)

Brand:
US Motors (Nidec)
Model:
S7P2A
Condition:
New
0 Customer Reviews
Out Of Stock
Adding to cart… The item has been added

Technical Specifications

Model:
S7P2A
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
General Purpose
Horsepower Rating:
7.5 HP
Synchronous RPM:
1800 RPM
Rated RPM:
1765 RPM
Frame Size:
213T
Rated Supply Voltage:
208-230/460 V
Motor Enclosure Type:
Totally Enclosed Fan Cooled (TEFC)
Motor Design Class:
B
Full Load Torque:
22.3
Rated Voltage:
208 V
Rated Voltage:
230 V
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1.15
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
91.7%
Construction:
Rolled Steel
C Dimension:
18.8
Bearing Type:
6205-2Z-J/C3
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
20-18.1/9.1 A

Product Information

US Motors (Nidec) Series

7 1/2 HP, 1765 RPM, S7P2A, 208-230/460 V, 60 HZ, 213T

Steel Edge

APPLICATIONS:

For general industrial equipment including fans, blowers, compressors, pumps and direct connected equipment.

FEATURES:

  • Rolled Steel Frame
  • Class F Insulation, Class B Rise At Full Load On 60 Hertz Sine Wave Power
  • "CE" Mark on Nameplate (140 Frame & Larger)
  • Shaft Slinger On Pulley End
  • 40°C Ambient, NEMA®† Design B Performance On 60 Hertz Sine Wave Power
  • Sine Wave Power
  • Sealed Bearings (140 Frame); Double Shielded Bearings (180 Frame and Up)
  • Dual Voltage Ratings Suitable For Part Winding Start (PWS) On Low Voltage
