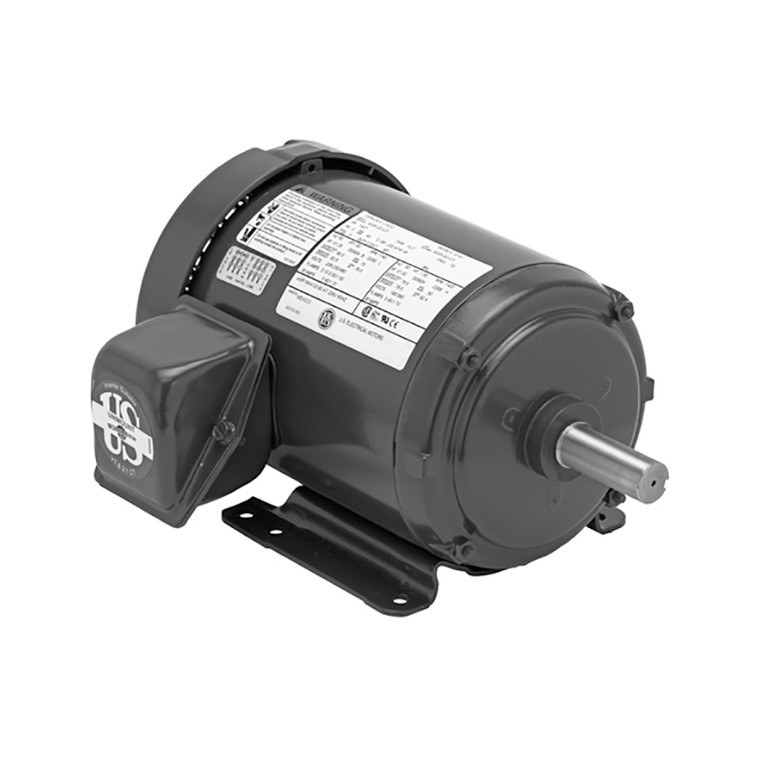

US Motors (Nidec), AC Motor, S5P1G, 5 HP, 3600 RPM, Three Phase, 575 V, 60 Hz, 184T (S5P1G)

Brand:
US Motors (Nidec)
Model:
S5P1G
Condition:
New
0 Customer Reviews
Out Of Stock
Adding to cart… The item has been added

Technical Specifications

Model:
S5P1G
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
General Purpose
Horsepower Rating:
5 HP
Synchronous RPM:
3600 RPM
Rated RPM:
3515 RPM
Frame Size:
184T
Rated Supply Voltage:
575 V
Motor Enclosure Type:
Totally Enclosed Fan Cooled (TEFC)
Motor Design Class:
B
Full Load Torque:
7.5
Rated Voltage:
575 V
Phase:
Three Phase
Service Factor:
1.15
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
88.5%
Construction:
Rolled Steel
C Dimension:
15.8
Bearing Type:
6205-2Z-J/C3
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
4.9 A

Product Information

US Motors (Nidec) Series

5 HP, 3515 RPM, S5P1G, 575 V, 60 HZ, 184T

Steel Edge

APPLICATIONS:

For general industrial equipment including fans, blowers, compressors, pumps and direct connected equipment.

FEATURES:

  • Rolled Steel Frame
  • Class F Insulation, Class B Rise At Full Load On 60 Hertz Sine Wave Power
  • "CE" Mark on Nameplate (140 Frame & Larger)
  • Shaft Slinger On Pulley End
  • 40°C Ambient, NEMA®† Design B Performance On 60 Hertz Sine Wave Power
  • Sine Wave Power
  • Sealed Bearings (140 Frame); Double Shielded Bearings (180 Frame and Up)
  • Dual Voltage Ratings Suitable For Part Winding Start (PWS) On Low Voltage
