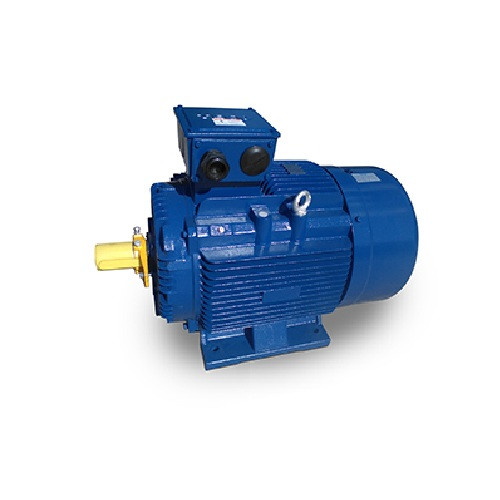

TECO MP0604 60 HP, 1800 RPM, 208-230/460 V, TEFC, 225M Frame, Three Phase, 60/50 Hz (MP0604)

Brand:
TECO
Model:
MP0604
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added

TECO MP0604:

  • 60 HP
  • 65.7 Motor FLA
  • 208-230/460 V
  • 1800 RPM
  • 225M Frame
  • Totally Enclosed Fan Cooled (TEFC)
  • Three Phase
  • 95% Efficiency
  • 86.5% Power Factor
Write a Review

Technical Specifications

Product Information

TECO Series

MAX-IE3 IEC METRIC IE3 EFFECIENCY TEFC

APPLICATIONS:

  • Fans & Blowers
  • Pumps
  • Compressors
  • Any Application that Requires IEC Mounting Dimensions

Features

FEATURES:

  • Output Range: 1 - 150 HP (0.75 - 112 kW)
  • Speed: 3600, 1800 & 1200 RPM
  • Enclosure: Totally Enclosed Fan Cooled (IP55)
  • Voltage: 230/460V (Usable on 208V)(1) Ratings 150 HP and up are 460V only
  • Three Phase, 60 Hz, 1.15 Service Factor (Continuous); 50 Hz, 1.0 Service Factor (Continuous)
  • Class F Insulation
  • Class B Temperature Rise
  • Cast Iron Frame, End Brackets and Main Conduit Box; Rolled Steel Fan Cover
  • Grounding Terminal Inside Main Conduit Box
  • Oversized Main Conduit Box Rotatable in 90 Degree Increments - F3 Mounted (IM1001)
  • Designed for 40 degrees C Ambient Temperature
  • Designed for 3300 ft. Elevation
  • Bi-Directional Rotation
  • 1045 Carbon Steel Shaft
  • Aluminum Die Cast Squirrel Cage Rotor Construction
  • New Dual Column Design Nameplate as Standard (60/50 Hz)
  • Suitable for Inverter Use per NEMA MG-1 Part 31.4.4.2
  • Inverter Duty Speed Range: 20:1 Variable Torque, 10:1 Constant Torque
  • Motors are CE Marked
