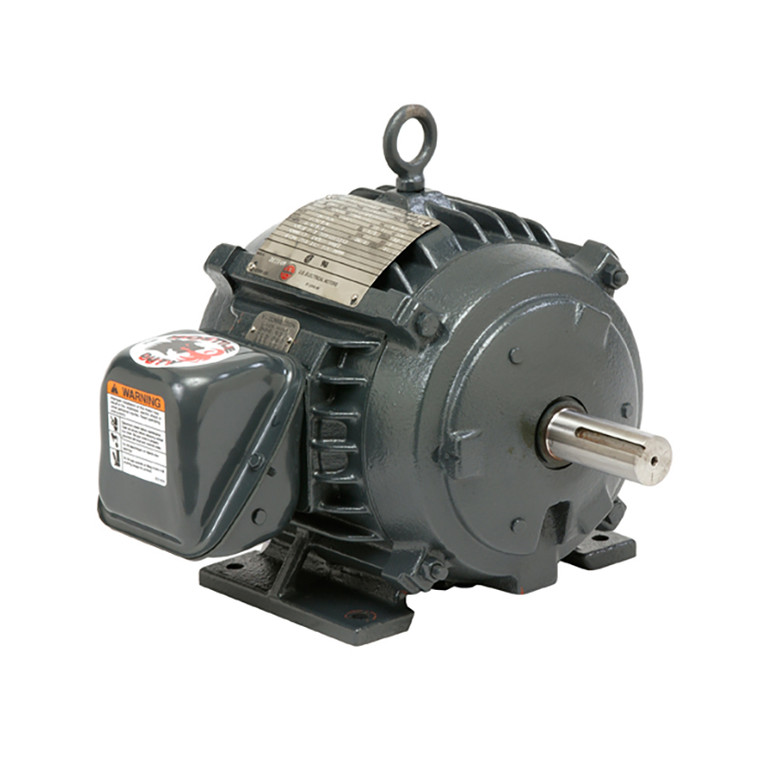

US Motors (Nidec), AC Motor, HVW15V2H6, 15 HP, 1800 RPM, Three Phase, 200 V, 60 Hz, 254T (HVW15V2H6)

US Motors (Nidec), AC Motor, HVW15V2H6, 15 HP, 1800 RPM, Three Phase, 200 V, 60 Hz, 254T (HVW15V2H6)

Brand:
US Motors (Nidec)
Model:
HVW15V2H6
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
HVW15V2H6
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
Definite Purpose
Horsepower Rating:
15 HP
Synchronous RPM:
1800 RPM
Rated RPM:
1775 RPM
Frame Size:
254T
Rated Supply Voltage:
200 V
Motor Enclosure Type:
Totally Enclosed Air Over (TEAO)
Motor Design Class:
B
Full Load Torque:
44.4
Rated Voltage:
208 V
Phase:
Three Phase
Service Factor:
1.15
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
92.4%
C Dimension:
22.1
Bearing Type:
6309-2RS-J/C3
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
42 A

Product Information

US Motors (Nidec) Series

15 HP, 1775 RPM, HVW15V2H6, 200 V, 60 HZ, 254T
Download Brochure
Download Manual
