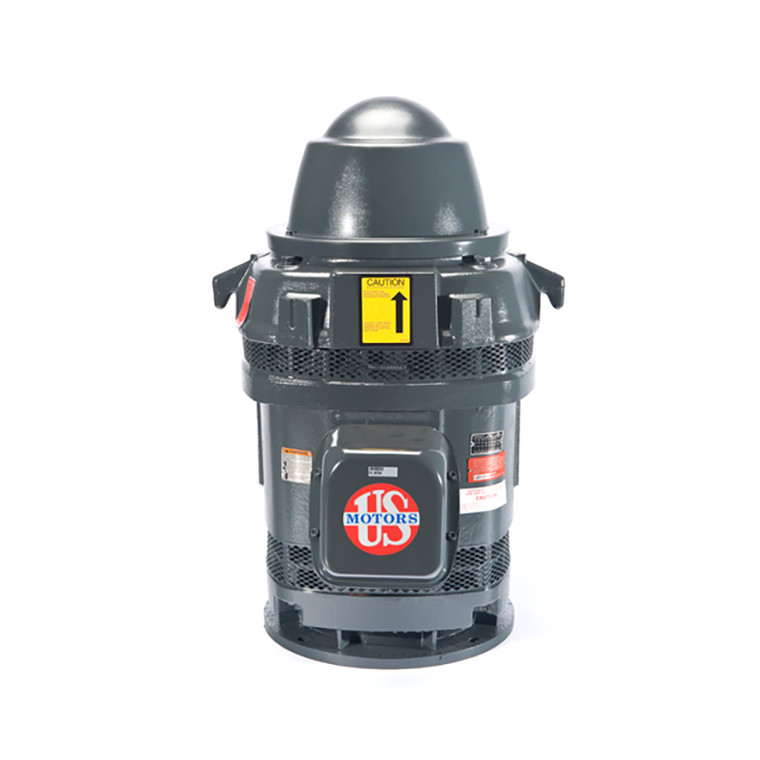

US Motors (Nidec), AC Motor, HO300P2RLHX, 300 HP, 1800 RPM, Three Phase, 00209 V, 60 Hz, 447TPA (HO300P2RLHX)

US Motors (Nidec), AC Motor, HO300P2RLHX, 300 HP, 1800 RPM, Three Phase, 00209 V, 60 Hz, 447TPA (HO300P2RLHX)

Brand:
US Motors (Nidec)
Model:
HO300P2RLHX
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
HO300P2RLHX
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
Vertical
Horsepower Rating:
300 HP
Synchronous RPM:
1800 RPM
Rated RPM:
1785 RPM
Frame Size:
447TPA
Rated Supply Voltage:
00209 V
Motor Enclosure Type:
Weather Protected I (WP1)
Motor Design Class:
B
Full Load Torque:
883.2
Rated Voltage:
209 V
Phase:
Three Phase
Service Factor:
1.15
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
95.8%
Construction:
Cast Iron
C Dimension:
55
Bearing Type:
6215-J
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
704/407-352 A

Product Information

US Motors (Nidec) Series

300 HP, 1785 RPM, HO300P2RLHX, 00209 V, 60 HZ, 447TPA
Download Brochure
Download Manual

Hollow Shaft

APPLICATIONS:

For use on turbine, mix flow and propeller pumps.

FEATURES:

  • Class F Insulation
  • 1.15 Service Factor
  • Maximum 40°C Ambient, 3,300 Feet Altitude
  • Capacitor Start Design
  • Corrosion Resistant Mill & Chemical Duty Paint
  • NRR = Non-Reverse Ratchet
  • Discount Symbol: DS-7VS
