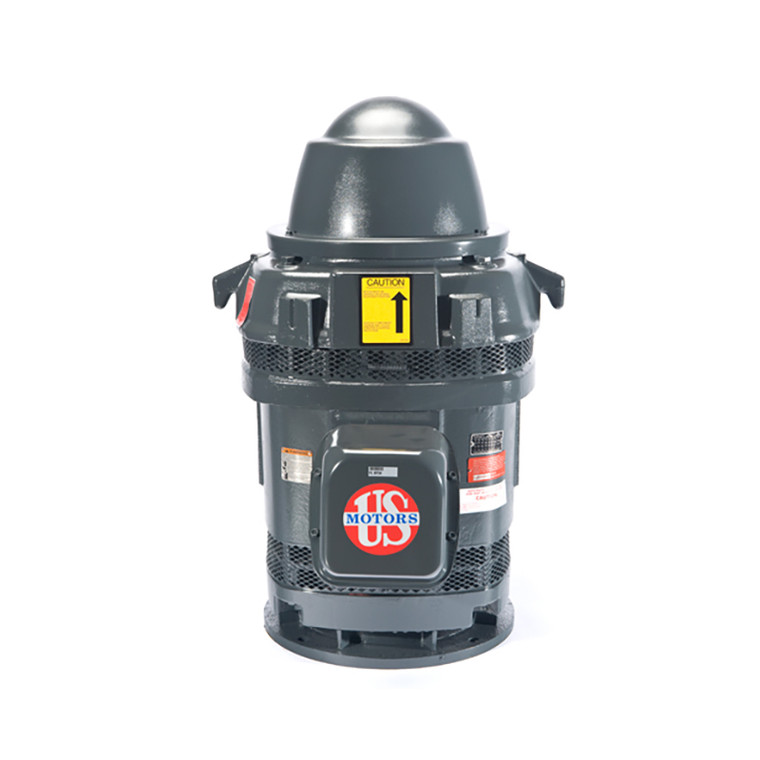

US Motors (Nidec), AC Motor, HO20P2BLF, 20 HP, 1800 RPM, Three Phase, 230/460 V, 60 Hz, 256TPH (HO20P2BLF)

Brand:
US Motors (Nidec)
Model:
HO20P2BLF
Condition:
New
0 Customer Reviews
Out Of Stock
Adding to cart… The item has been added

Technical Specifications

Model:
HO20P2BLF
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
Vertical
Horsepower Rating:
20 HP
Synchronous RPM:
1800 RPM
Rated RPM:
1775 RPM
Frame Size:
256TPH
Rated Supply Voltage:
230/460 V
Motor Enclosure Type:
Weather Protected I (WP1)
Motor Design Class:
B
Full Load Torque:
59.2
Rated Voltage:
230 V
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1.15
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
93%
Bearing Type:
6210-2Z-J/C3
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
48/24 A

Product Information

US Motors (Nidec) Series

20 HP, 1775 RPM, HO20P2BLF, 230/460 V, 60 HZ, 256TPH

Hollow Shaft

APPLICATIONS:

For use on turbine, mix flow and propeller pumps.

FEATURES:

  • Class F Insulation
  • 1.15 Service Factor
  • Maximum 40°C Ambient, 3,300 Feet Altitude
  • Capacitor Start Design
  • Corrosion Resistant Mill & Chemical Duty Paint
  • NRR = Non-Reverse Ratchet
  • Discount Symbol: DS-7VS
