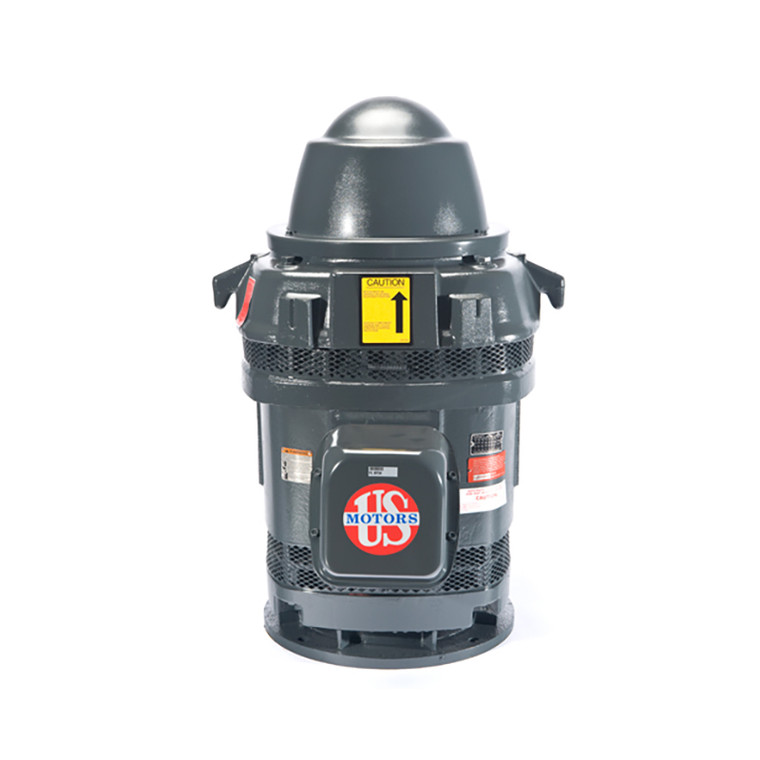

US Motors (Nidec), AC Motor, HO10P2BLE, 10 HP, 1800 RPM, Three Phase, 230/460 V, 60 Hz, 215TP (HO10P2BLE)

US Motors (Nidec), AC Motor, HO10P2BLE, 10 HP, 1800 RPM, Three Phase, 230/460 V, 60 Hz, 215TP (HO10P2BLE)

Brand:
US Motors (Nidec)
Model:
HO10P2BLE
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
HO10P2BLE
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
Vertical
Horsepower Rating:
10 HP
Synchronous RPM:
1800 RPM
Rated RPM:
1760 RPM
Frame Size:
215TP
Rated Supply Voltage:
230/460 V
Motor Enclosure Type:
Weather Protected I (WP1)
Motor Design Class:
B
Full Load Torque:
29.8
Rated Voltage:
230 V
Rated Voltage:
460 V
Phase:
Three Phase
Service Factor:
1.15
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
91.7%
C Dimension:
21.2
Bearing Type:
6208-2Z-J/C3
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
23.8/11.9 A

Product Information

US Motors (Nidec) Series

10 HP, 1760 RPM, HO10P2BLE, 230/460 V, 60 HZ, 215TP
Download Brochure
Download Manual

Hollow Shaft

APPLICATIONS:

For use on turbine, mix flow and propeller pumps.

FEATURES:

  • Class F Insulation
  • 1.15 Service Factor
  • Maximum 40°C Ambient, 3,300 Feet Altitude
  • Capacitor Start Design
  • Corrosion Resistant Mill & Chemical Duty Paint
  • NRR = Non-Reverse Ratchet
  • Discount Symbol: DS-7VS
