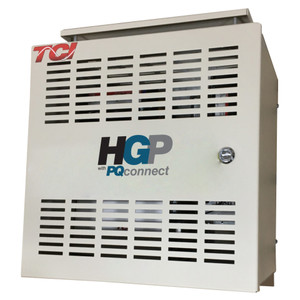

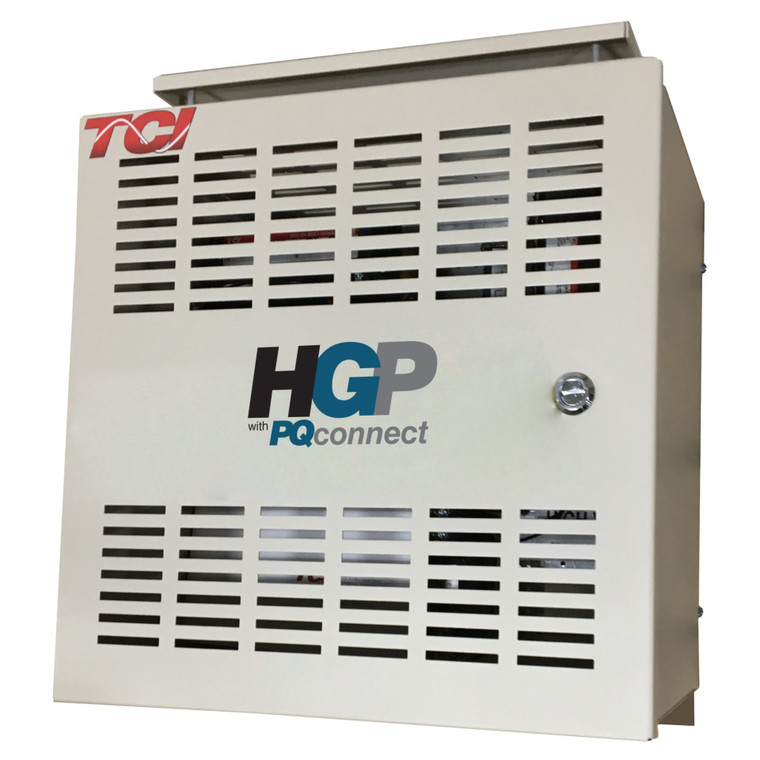

TCI HGP Harmonic Filter, 100HP, 124A, 480V, NEMA 3R, w/ Contactor (HGP0100AW3C100P)

TCI HGP Harmonic Filter, 100HP, 124A, 480V, NEMA 3R, w/ Contactor (HGP0100AW3C100P)

Brand:
TCI
Model:
HGP0100AW3C100P
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
In Stock
Call for Price
Adding to cart… The item has been added

TCI harmonic filters help to lower the harmonic distortion caused by VFDs. They help to bring compliance and prevent electrical component damage.

HGP0100AW3C100P

  • 100 Horsepower
  • 124 Amps
  • 480 Volt
  • NEMA 3R
Write a Review

Technical Specifications

Series:
HGP
Model:
HGP0100AW3C100P
Brand:
TCI
Product Condition:
New
Rated Voltage:
480 V
Rated Amps:
124 A
Phase:
Three Phase
Enclosure Rating:
NEMA 3R
Heat Loss:
800 W
Horsepower Rating:
100 HP
Height:
38.60 in
Width:
39.51 in
Depth:
13.50 in

Product Information

TCI HGP Series

TCI is known in the electrical industry for power quality equipment, ranging from input to output filters. TCI harmonic filters help to prolong the life of your electrical equipment. They are a key part of achieving IEEE 519 and utility compliance.

Standard Features

  • HGP HarmonicGuard Passive Harmoinc Filter
  • Options for advanced controls and communications
