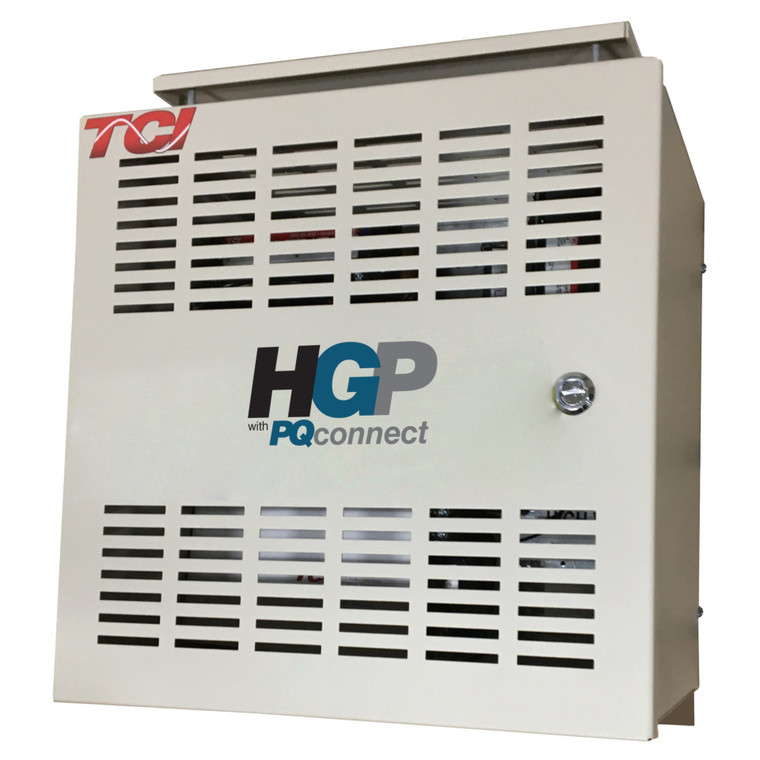

TCI HGP Harmonic Filter, 40HP, 52A, 480V, NEMA 3R, PQconnect w/ Modbus RTU, w/ Contactor (HGP0040AW3C100H)

TCI HGP Harmonic Filter, 40HP, 52A, 480V, NEMA 3R, PQconnect w/ Modbus RTU, w/ Contactor (HGP0040AW3C100H)

Brand:
TCI
Model:
HGP0040AW3C100H
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added

TCI harmonic filters help to lower the harmonic distortion caused by VFDs. They help to bring compliance and prevent electrical component damage.

HGP0040AW3C100H

  • 40 Horsepower
  • 52 Amps
  • 480 Volt
  • NEMA 3R
Write a Review

Technical Specifications

Series:
HGP
Model:
HGP0040AW3C100H
Brand:
TCI
Product Condition:
New
Horsepower Rating:
40 HP
Rated Amps:
52 A
Rated Voltage:
480 V
Phase:
Three Phase
Enclosure Rating:
NEMA 3R
Communication Protocol:
PQconnect w/ Modbus RTU
Heat Loss:
500 W
Height:
38.60 in
Width:
39.51 in
Depth:
13.50 in

Product Information

TCI HGP Series

TCI is known in the electrical industry for power quality equipment, ranging from input to output filters. TCI harmonic filters help to prolong the life of your electrical equipment. They are a key part of achieving IEEE 519 and utility compliance.

Standard Features

  • HGP HarmonicGuard Passive Harmoinc Filter
  • Options for advanced controls and communications
Download Brochure
Download Manual
Download Drawing
