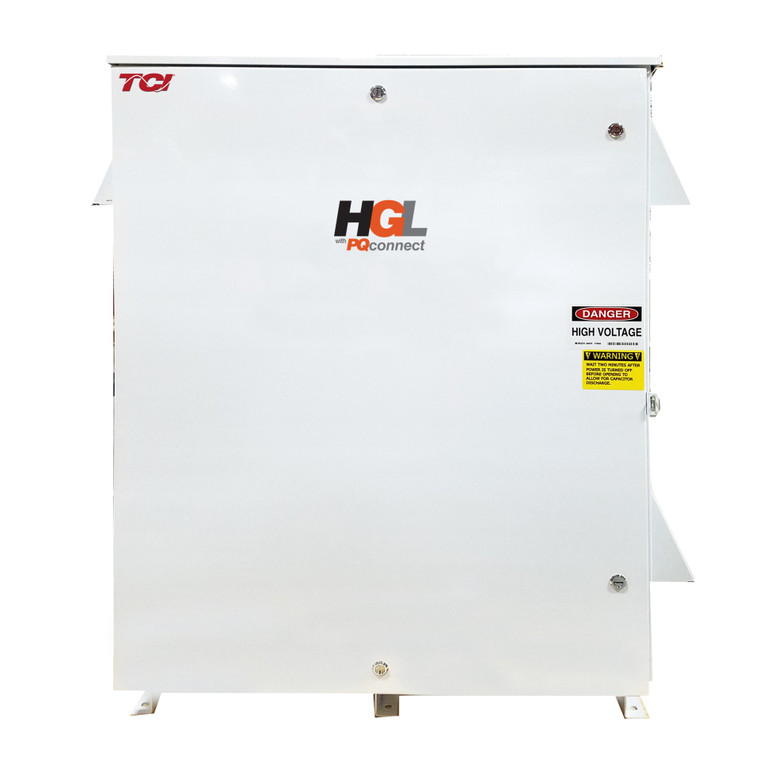

TCI HGL Harmonic Filter, 100HP, 124A, 480V, IP 00, PQconnect w/ Modbus RTU, w/ Contactor (HGL0100AW0C1000)

TCI HGL Harmonic Filter, 100HP, 124A, 480V, IP 00, PQconnect w/ Modbus RTU, w/ Contactor (HGL0100AW0C1000)

Brand:
TCI
Model:
HGL0100AW0C1000
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added

TCI harmonic filters help to lower the harmonic distortion caused by VFDs. They help to bring compliance and prevent electrical component damage.

HGL0100AW0C1000

  • 100 Horsepower
  • 124 Amps
  • 480 Volt
  • IP 00
Write a Review

Technical Specifications

Series:
HGL
Model:
HGL0100AW0C1000
Brand:
TCI
Product Condition:
New
Horsepower Rating:
100 HP
Rated Amps:
124 A
Rated Voltage:
480 V
Phase:
Three Phase
Enclosure Rating:
IP 00
Communication Protocol:
PQconnect w/ Modbus RTU
Heat Loss:
770 W
Height:
56.00 in
Width:
17.00 in
Depth:
11.50 in

Product Information

TCI HGL Series

TCI is known in the electrical industry for power quality equipment, ranging from input to output filters. TCI harmonic filters help to prolong the life of your electrical equipment. They are a key part of achieving IEEE 519 and utility compliance.

Standard Features

  • HGL HarmonicGuard Low Capacitance
  • Options for advanced controls and communications
Download Brochure
Download Manual
Download Drawing
