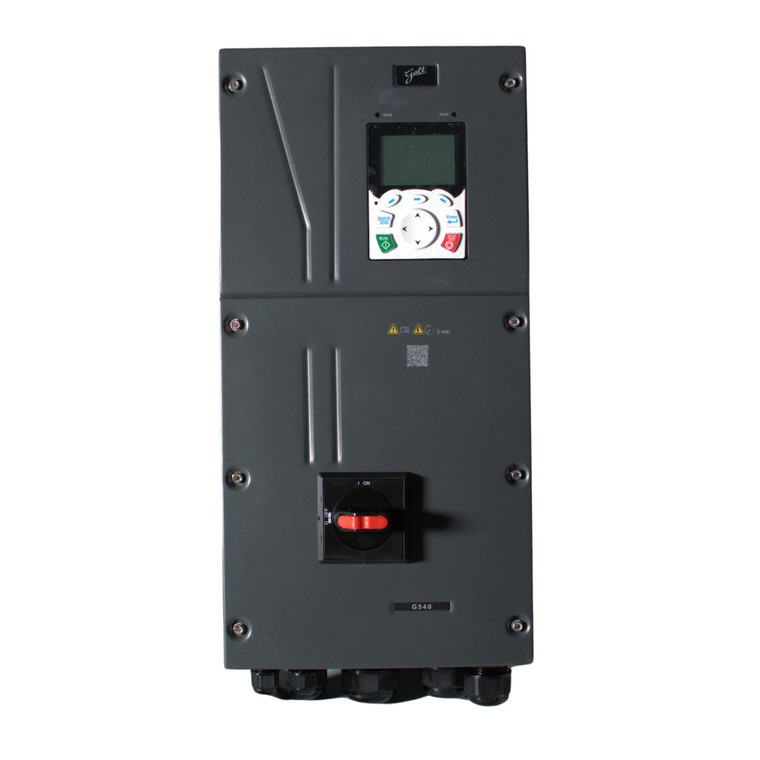

15HP 460V Galt Electric G500 VFD, IP55 (G540-00230IP55-03)

15HP 460V Galt Electric G500 VFD, IP55 (G540-00230IP55-03)

Brand:
GALT ELECTRIC
Model:
G540-00230IP55-03
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
In Stock
Online Price: $1,524.75
Adding to cart… The item has been added

Galt G500 variable frequency drives are general-purpose industrial VFDs meant for use in pumps, fans, compressors, and many other applications. Sized for variable torque 120% overload, they can be derated for constant torque 150% or 200% overloads as well as higher elevations or ambient temperatures.

The G500 inverter is compatible with many common communication protocols and has options like external keypads. Available in 240V, 480V, and 575V and ranging in size from 1 to 800 horsepower, G500 adjustable speed drives are easy to install and use.

G540-00230IP55-03

  • 15 Horsepower
  • 23 Amps
  • 480 Volt
  • IP55
  • UL rated
  • Three phase input and output
  • Modbus communication protocol standard
  • External keypad for easy programming
  • 3-year manufacturer warranty
Free shipping over $50*
Write a Review

Technical Specifications

Product Information

GALT ELECTRIC G500 Series

Galt Electric's mission is to make technology approachable. The G500 series VFD is the embodiment of this mission. With the most common capabilities that you'll need in an inverter and the important upgrades and capabilities, the G500 drive can handle any application, including pumps, fans, conveyors, crushers, and compressors.

Galt AC drives are reliable out of the box and backed with a 3-year standard warranty. With online support videos and experts available by phone, email, and chat, you're supported with any question you have. The simple interface and available option card, keypad, and HMI upgrades give you options to make your interactions with the VFD as easy as possible.

The Galt G500 series is the VFD that will help make your system to be reliable, usable, and efficient.

Standard Features

  • IP55 enclosure for advanced protection in more environments
  • External detachable LED keypad used to change input, output, and other settings easily
  • High performance open or closed-loop sensorless vector control
  • Compatible with option cards and upgraded LCD keypad
  • Integrated PID controller
  • Capable of controlling asynchronous and synchronous permanent magnet motors
  • DC injection, dynamic, flux, and short-circuit braking compatible
  • Built-in C3 EMC filter to prevent electromagnetic interference
  • 1:200 speed ration for motor driving performance
  • Accurate static and rotating parametric auto tuning of the motor
  • 8 digital inputs, 2 open-collector outputs; 2 relay outputs, 2 form C relay outputs; 3 analog inputs, 2 analog outputs
  • QR code display for additional parameter information and fault troubleshooting
