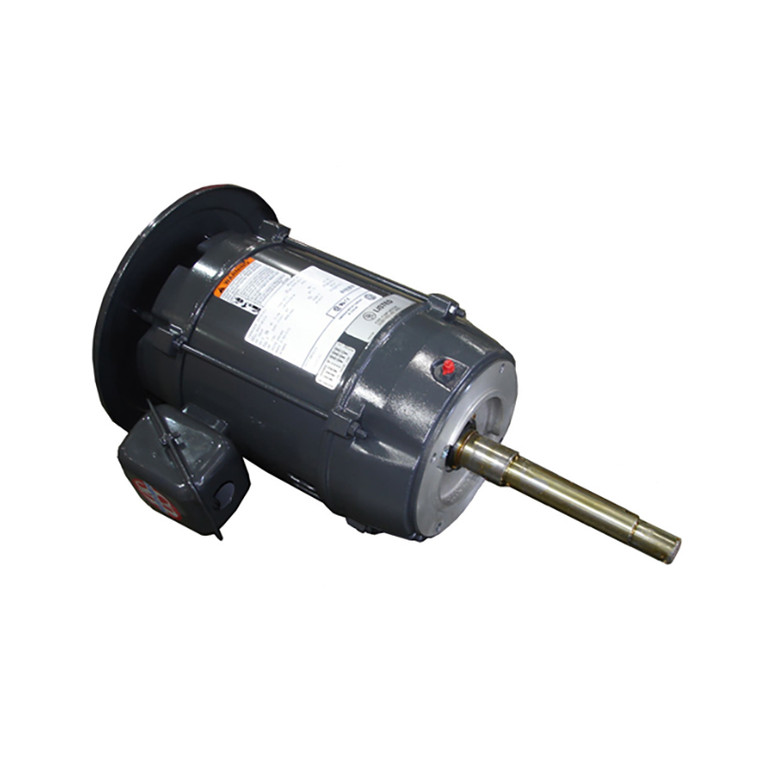

US Motors (Nidec), AC Motor, FF15E1GV, 15 HP, 3600 RPM, Three Phase, 575 V, 60 Hz, 215JP (FF15E1GV)

US Motors (Nidec), AC Motor, FF15E1GV, 15 HP, 3600 RPM, Three Phase, 575 V, 60 Hz, 215JP (FF15E1GV)

Brand:
US Motors (Nidec)
Model:
FF15E1GV
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
FF15E1GV
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
Definite Purpose
Horsepower Rating:
15 HP
Synchronous RPM:
3600 RPM
Rated RPM:
3495 RPM
Frame Size:
215JP
Rated Supply Voltage:
575 V
Motor Enclosure Type:
Open Drip Proof (ODP)
Motor Design Class:
B
Full Load Torque:
22.6
Rated Voltage:
575 V
Phase:
Three Phase
Service Factor:
1.15
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
89.5%
C Dimension:
24
Bearing Type:
6205-2Z-J/C3
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
14.5 A

Product Information

US Motors (Nidec) Series

15 HP, 3495 RPM, FF15E1GV, 575 V, 60 HZ, 215JP
