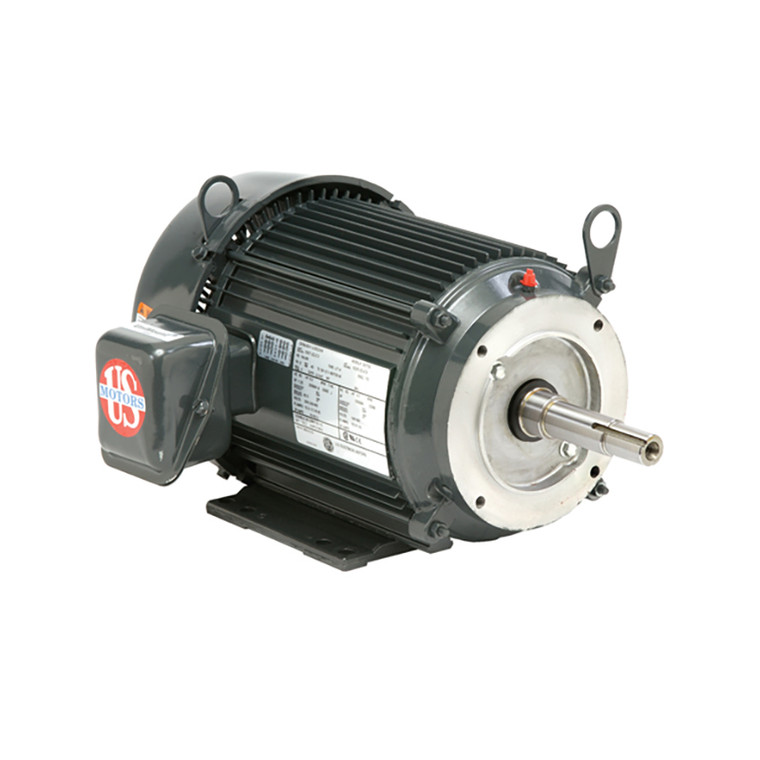

US Motors (Nidec), AC Motor, UJ15P1GM, 15 HP, 3600 RPM, Three Phase, 575 V, 60 Hz, 254JM (UJ15P1GM)

US Motors (Nidec), AC Motor, UJ15P1GM, 15 HP, 3600 RPM, Three Phase, 575 V, 60 Hz, 254JM (UJ15P1GM)

Brand:
US Motors (Nidec)
Model:
UJ15P1GM
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge
Out Of Stock
Call for Price
Adding to cart… The item has been added
Write a Review

Technical Specifications

Model:
UJ15P1GM
Brand:
US Motors (Nidec)
Product Condition:
New
Motor Type:
Pump
Horsepower Rating:
15 HP
Synchronous RPM:
3600 RPM
Rated RPM:
3550 RPM
Frame Size:
254JM
Rated Supply Voltage:
575 V
Motor Enclosure Type:
Totally Enclosed Fan Cooled (TEFC)
Motor Design Class:
A
Full Load Torque:
22.2
Rated Voltage:
575 V
Phase:
Three Phase
Service Factor:
1.25
Insulation Class:
F
Duty Cycle:
Continuous
Efficiency:
91%
C Dimension:
25.4
Bearing Type:
6207-2Z-J/C3
Rated Input Frequency:
60 Hz
Motor Full Load Amps:
14.1 A

Product Information

US Motors (Nidec) Series

15 HP, 3550 RPM, UJ15P1GM, 575 V, 60 HZ, 254JM
